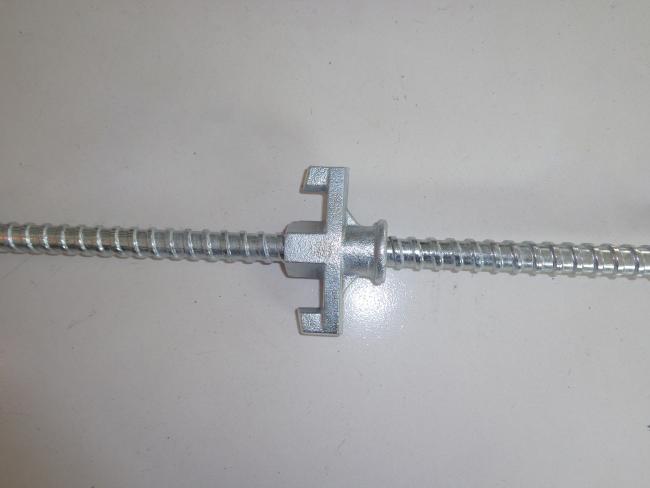

Tie Rod Formwork System Accessories Two Wing Nut

◆Product Overview

Formwork Nut is a kind of important accessories in pouring shear wall project. Together with the Tie Rod, they act as wall tie system, to fasten the formwork panels tightly during concrete pouring process. They can also be used in other applications for fasten purpose.

We have wing nut,swivel nut/combination nut,anchor nut ,waller plate with nut.

With different size and weight,we can also make them according to your drawing or sample.

◆Product Parameter

Tie nut types	Formwork wing nut
Sample
Weight	0.175/0.25/0.3/0.61KG etc.
Pull	140-150KN
Process	Casted iron
Surface treatment	Natural,EG,HDG
Heat treatment	Depends on customers
Match tie rod	12/17/20MM or customized
Material	Ductile casted iron QT450-10
Colour	Self color (black), silver galvanized or colorful galvanized

◆Product Advantage

1. All range: we could produce all kinds of casting tie nuts,such as wing nut, water stopper etc.

2. Safe and high strength:the strength of our formwork tie nut is bigger than tie rod

3.Various types: different shapes and sizes, match different formwork tie rod
