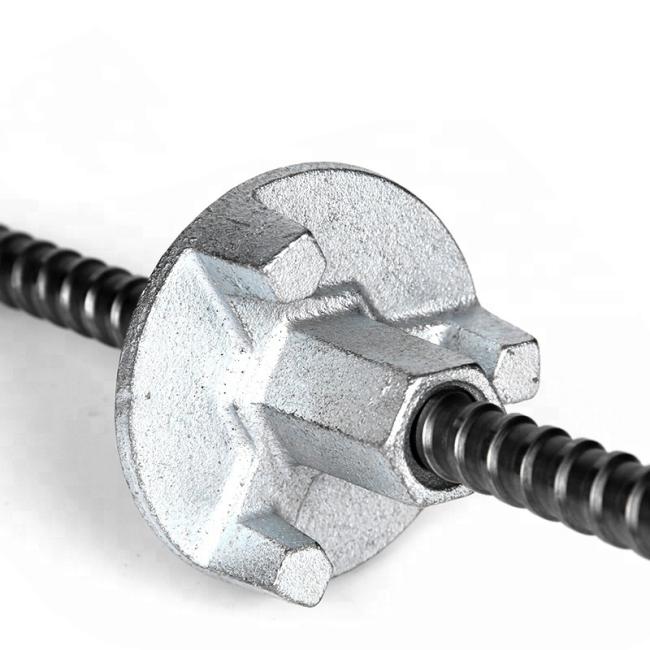

15mm Dywidag Adjustable Tie Rod Formwork Tie Rod System

◆Product Overview

Tie rod refers to the component used to support and fix the formwork in engineering construction. It is composed of tie rod,plate,wing nut and other accessories.

The screw is used to tie the wall and the outer formwork,bear the lateral pressure of the concrete and other loads, to ensure that the distance between the inner and outer formwork can meet the design requirements, but also the fulcrum of the formwork and its supporting structure. Therefore, the arrangement of tie rod has a great influence on the integrity, rigidity and strength of the formwork structure.

Fostered with a team of highly experienced professionals, we are offering Tie Rod. The offered tie rod is provided in various specifications as per the need of the clientele. Our given tie rod is designed utilizing the finest quality material and advanced technology. This tie rod is carefully checked on set quality norms that assure its quality and strength.

◆Product Parameter

Tie rod types	17mm Tie Rod
Pics
Material	45# steel
Diameter	15/17mm
Pitch	10/6.35mm
Length	0-6m
Weight	1.5kg
Finish	Natural , Electric galvanized
Color	Original self color, Silver,Golden
Craft	Cold rolled
Strength	140-150KN
Other name	Tie Rod 16MM,Formwork tie bar,Formwork waterstop tie rod

◆Product Advantage

1. Various size and finish:Match all your needs

2. Various material: Q235 steel, 45# steel and PSB830 hot rolled steel are all available

3. High Stength: from 4.5ton to 20tons, we could supply test report for checking

4. One stop purchase : we could produce full set of formwork tie rod accessories
