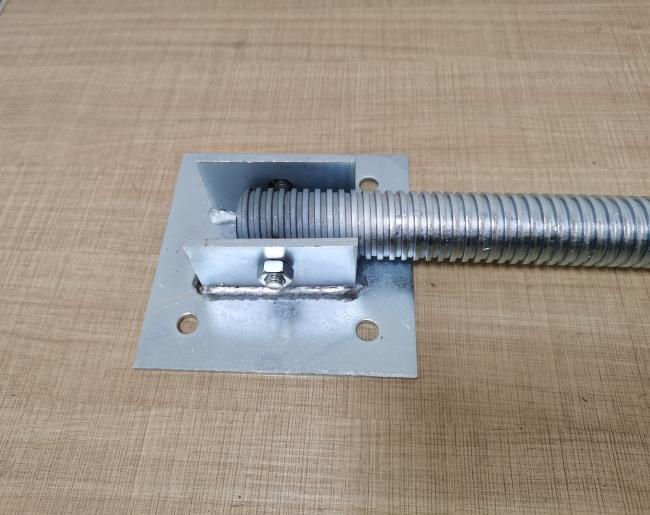

Complete specifications galvanized scaffolding swivel jack base

◆Product Overview

A threaded rod is a fastener and functions thanks to the threading, which causes a tightening action from the rotational movement. Threading on a rod allows other fixings like bolts and nuts to easily screw or fasten to it.

Threaded rods have many applications, effectively working as a pin to fasten or connect two materials together.

Also used to stabilise structures, they can be inserted into various materials like concrete, wood or metal to either temporarily create a steady base during construction or they can be installed permanently.

This screw jack used a base for scaffolding frames. The jacks fit on the inside of each frame leg allowing the height to be adjusted on each frame leg to account for uneven ground below the scaffolding. This particular screw jack fits every style of frame we carry (Safeway, Waco, and Bil-Jax).

With various size, its compressive strength is from 85.87KN to 236.1KN. Also different surface treatment(self color, painted, electro galvanzied, HDG)and color are available.

◆Product Parameter

Scaffolding types	Swivel Jack base
Sample
Weight	1-5kg
Material	Q235 or 20# Steel
Diameter	28/30/32/34/35/38/48MM etc
Length	200/280/600/760MMetc, or customized
Floor size	120*120*5MM 150*150*5MM etcor customized
Surface treatment	Natural ,painted, Electro galvanized,HDG
Color	Black,silver,or colorful galvanized

◆WST Scaffolding Will Supply:

1.Reliable performance

2.Corrosion resistance

3.Durable finish standards

4.Strong anti-sliding performance
