Vertical Batch 670 Liter Industrial Drying Equipment
GMP apploved Pharmaceutical industrial drying equipment with stirring paddle
Pharmaceutical Industrial Drying Equipment Batch Type With Stirring Paddle
Application
Features
1. Fluidizing drying, quick heat transfer.
2. Operation in hermetic closure and negative pressure, no dust nuisance
3. No dead corner, easy to clean, no cross contamination.
4. Mixing blade or negative pressure feeding system for optional to meet some special requirements.
5. Use antistatic filter material, processing is safe.
6. Compares to GFG type, FG Series High Efficiency Vertical Fluid Bed Dryer with Stirring Paddlehas bigger fluidizing space.

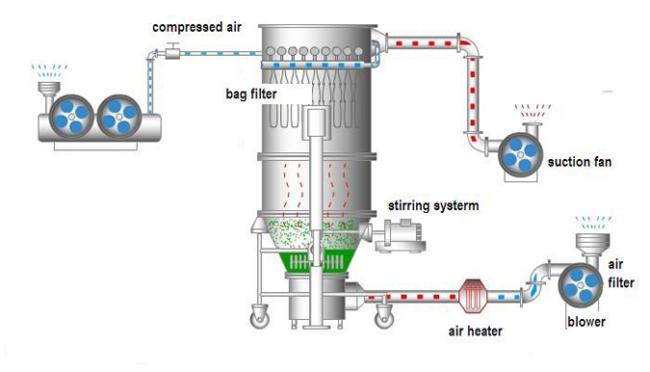

Working Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material,. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the material is dried quickly,
Difference point from FL Fluid Bed Dryer is
Technical Parameters
| Item | unit | Model | ||||||||
| 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 45 | 90 | 160 | 300 | 450 | 750 | |
| fan power | kw | 3 | 4 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 70 | 141 | 211 | 282 | 366 | 451 | |
| Compressed-air consumption | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | |
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | ||||||||
| working time | min | decided in accordance with the properties of raw materials | ||||||||
| collect rate | % | ≥99 | ||||||||
| noise | dB(A) | <75 | ||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4400 | |
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
