Biodegradable Lunch Tray Pulp Molded Production Machine
Biodegradable lunch tray pulp molded production machine
Machine Description
Biodegradable lunch tray pulp molded production machine is full automatic with the help of robot which has significantly save a lot of labor. 1 worker can simultaneously operate 3 tableware machine. By using bagasse pulp, bamboo pulp, straw pulp, and other virgin pulp as raw material, the lunch tray comes out is eco-friendly and plastic-free, no badly smell or wasted water is generated during the production.
| Technical Description | |
| Machine Model | |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Key Advantages of pulp molded food tray
Zero water waste,plastic free eco molded pulp fiber food trays.
Made from biodegradable & compostable sustainable pulp trays for salad,sushi pack.
Chemical free eco-friendly plant fiber food plate.
Water resistant,oil-proof ,no PFAS available.
Illustration of machine and products

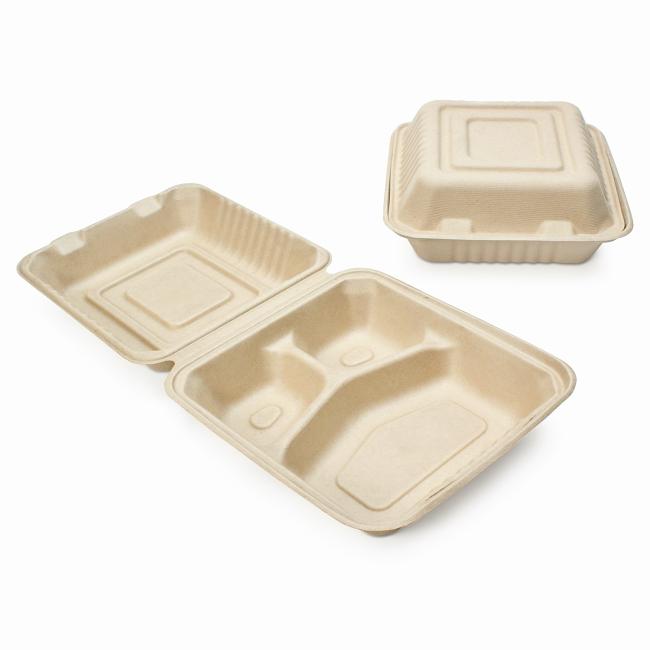

Illustration of products
