Standard Semi-Automatic 25KG Valve Bag Packing Machine in Chemical Industry
Standard Semi-Automatic 25KG Valve Bag Packing Machine in Chemical Industry
Product Introduction
The semi-automatic valve bag packing machine is designed for efficient and accurate packaging of powder and granular materials into valve bags from 10-50kg.
This machine is widely used in chemical, building material, mineral, fertilizer, food additive, and feed industries.
The system supports manual bag feeding or optional automatic bag placer according to customer production requirements.
With stable weighing performance, dust-controlled filling, and compact structure, the machine provides a reliable and economical packaging solution for medium-capacity production lines.
Applicable Material
The materials packed by this equipment are mainly putty powder products without sand content, and lighter materials achieve the best performance. Examples include ordinary wall putty powder, water-resistant putty, joint filler putty, and other chemical powder products.
Main Features
- High weighing accuracy
- Stable filling performance
- Compact machine structure
- Easy operation and maintenance
- Optional automatic bag placer
- Dust collection connection reserved
- Suitable for powder and granule materials
- Adjustable filling speed
- PLC automatic control system
- Touch screen operation available
Technical Parameters
| Item | Specification |
|---|---|
| Machine Type | Semi-Automatic Valve Bag Packing Machine |
| Packing Weight Range | 10-50kg |
| Packing Capacity | 120-360 bags/hour |
| Weighing Accuracy | ±0.2% |
| Suitable Bag Type | Valve bags |
| Filling Method | Screw / Impeller / Air Float / Gravity |
| Feeding Type | Semi-automatic |
| Optional Device | Automatic Bag Placer |
| Control System | PLC + Touch Screen |
| Power Supply | 380V / 50Hz |
| Installed Power | 3-8KW |
| Air Pressure | 0.5-0.7MPa |
| Air Consumption | 0.3m³/min |
| Machine Material | Carbon Steel / SS304 Optional |
| Dust Collection Port | Included |
| Operating Method | Manual bag loading or optional auto bag placing |
Advantages
- Cost-Effective Solution
- Ideal for factories requiring stable packaging performance with moderate investment.
- Flexible Configuration
- Manual bag feeding or automatic bag placer can be selected according to automation requirements.
- Dust Reduction Design
- The machine is designed with dust control structure to improve workshop cleanliness.
- Wide Material Compatibility
- Suitable for ultra-fine powder, granular materials, and mixed bulk products.
- Easy Integration
- Can be connected with conveyors, palletizers, sewing machines, heat sealers, and wrapping systems.
Optional Equipment
- Automatic bag placer
- Dust collector
- Belt conveyor
- Sewing machine
- Heat sealing machine
- Metal detector
- Check weigher
- Robot palletizer
Package and Shipping

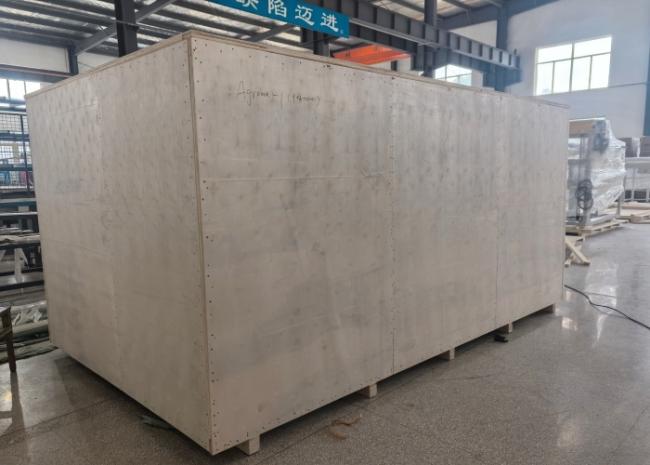

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship by sea from port Shanghai.
After-Sale Service
Fast Response
1. We will reply you in 1 work day to your problems.
Online Support
2. Provide online phone call support. Our engineer will call you to solve your problems.
3. Provide online video call support. Our engineer will send you a video call to guide you how to operate to solve the problems.
Spare Parts Support
1. Provide 1-year free spare parts change. Only if it is not broken by man-made.
