Wear Resistant Oxygenation Rubber Lagging Pulley With CN Adhesive Layer
Wear Resistant Oxygenation Rubber Lagging Pulley With CN Adhesive Layer

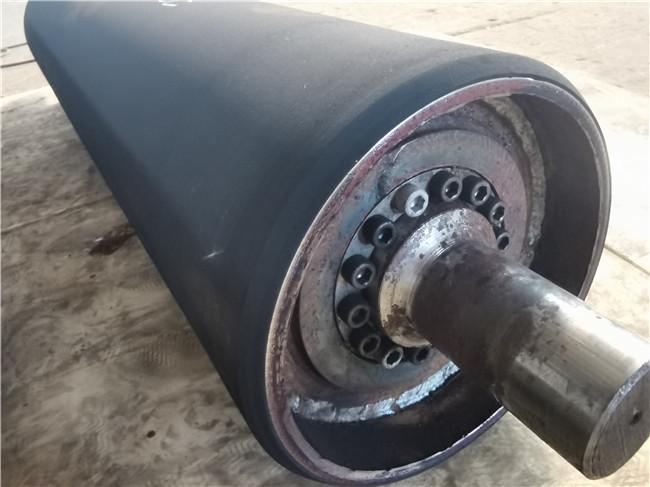

Wear Resistant Rubber Roller Lagging Belt Conveyor Drum Pulley
Ceramic Pulley Lagging Description:
Ceramic pulley lagging rubber sheet is essential to improve conveyor belt performance.
Ceramic lagging is used to reduce belt slippage, improve tracking and extend life of belt, bearing and other components.
Ceramic Pulley Lagging is specially suited for pulleys where slippage and excessive wear and tear problems make normal rubber lagging ineffective. The ceramic tiles help in proper grip of the belt under wet, muddy or any other such arduous conditions.
Features of ceramic pulley lagging:
1. Aluminum Oxide:95%.
2. Ceramic Hardness(Mohs) >9t
3. Working temperature:≤85 centigrade
4. Rubber Hardness: 60±5 Shore A
5. Tensile strength:15 MPa
6. With cn bonding layer or as request.
Installation of ceramic pulley lagging
Ceramic pulley lagging is suitable for pulleys performing in the most difficult conditions.
It can be installed through cold vulcanization process on site or at pulley manufacturer.
| Material | Natiral rubber,ceramic tile |
| Type | Diamond lagging,ceramic lagging,dimpled lagging,etc. |
| Feature | High wear resistance,high peel strength,easy installation |
| Width | 2000mm |
| Length | 10 meters in one roll |
| Thickness | 8,10,12,15,20mm,etc. |
| Rubber hardness | 60-65 shore A |
| Tensile strength | >15Mpa |
| Temperature | -40~80℃ |
| Elongation at break | >300% |
Features of rubber conveyor pulley lagging
1. Reduce conveyor belt slippage
2. Extend conveyor belt and conveyor pulley life
3. Available in natural rubber and fras approved rubber
4. With CN adhesive layer, semi vulcanized chloroprene rubber, make sure high adhesion between rubber and pulley
