Motorized 159mm Slat Conveyor Steel Roller With Labyrinth Seals

Motorized 159mm Slat Conveyor Steel Roller With Labyrinth Seals

Hot Sale Steel Flat Motorized Belt Conveyor Carrier Rollers For Mining

Conveyor rollers are components of belt conveyor systems as they provide load support on carry side and return side. The conveyor roller are standardised and designed according to international standards. Custom made rollers are available on request. shuanghuan have the capable of delivering a range of special-design rollers: water proof rollers, rollers for extreme climate conditions, conveyor roller for extreme loading, high speed conveyor rollers, low noise rollers, rollers for chemical conditions and case-hardened rollers.

HDPE roller idlers for self cleaning used on the transom to support the belt when the material being conveyed, performs a cleaning action and reduces the tendency of material to deposit itself and stick to the surface of the dirty side of the belt. They may be employed on any part of the return belt section in the case of short conveyors. On long sections it is satisfactory to employ these rollers only up to the point where the material does not adhere any more to the belt surface. These rollers should not be employed as snub rollers adjacent to the drive or return drums.

Characteristics for Transport Roller

1. Flat/Carrier/Carrying Rollers: Used to handle bulk&unit material.
2.Impact Rollers: Installed at the loading point to absorb the shocks and to help protect against belt damage.
3.Return Rollers: Used to sustain and support the belt during its return section and performs a cleaning action
---Return rollers with Spaced Rings (Rubber Disc Rollers)
---Return Rollers with Helical Rubber Rings (Spiral Rollers)
4. Self-aligning/Training Rollers: Used to adjust the belt deviation, preventing hunting and ensuring stable operation of conveyor belt.
---Tapered self-aligning rollers
---Friction self-aligning rollers

steel conveyor roller parameter

Product Overview

Conveyor roller is an important part of the belt conveyor. There are many types and large quantities of rollers, which can support the weight of the conveyor belt and the material been conveyed. The roller accounts for 35% of the total cost of a belt conveyor and generates more than 70% resistance, and plays a key role to extend the life of the conveyor belt, so the quality of the roller is particularly important.

Product Features At A Glance

1. Strong hardness and high wear resistance;

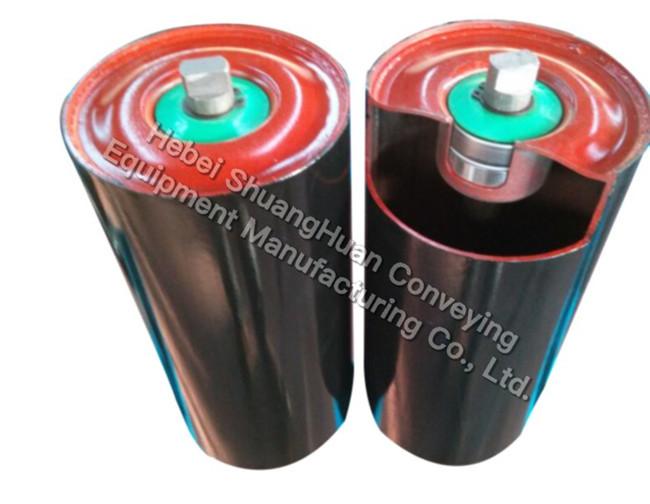

2. Good Sealing Performance - the carrying roller is fully sealed, and both ends are equipped with labyrinth seals, oil and grease will not leak, which can make the roller runs under a fully sealing state;

3. Long Service Life - the carrying roller can reduce belt wear, keep the belt run in its track, and extends the belt life;

4. Low Operating Cost - carrying rollers can reduce the overall cost of belt conveyors and reduce maintenance man-hours.
