Rubber Lined 0.4kW Conveyor Impact Roller DIN S235JR Impact Idlers
Rubber Lined 0.4kW Conveyor Impact Roller DIN S235JR Impact Idlers

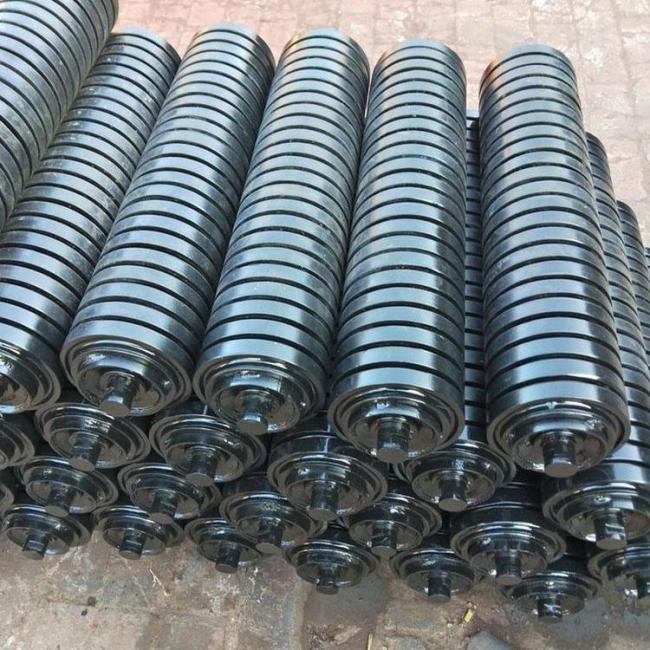

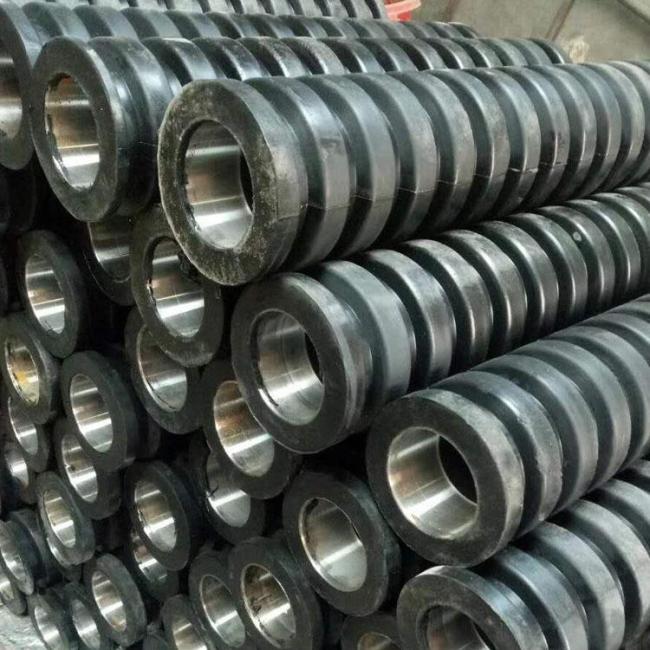

Conveyor Belt Impact Roller For Coal Mining Rubber Lined Roller
Impact rollers are widely used in mining. The special polymer material for roller body has mechanical properties similar to bronze, has good abrasion resistance, and has good self-lubricating properties and does not damage the belt. During use, damage will inevitably occur. Because most of the belt conveyors work in the environment with serious dust pollution and corrosiveness, especially the wear of some hard particles on the roller tube body is extraordinary. Although a lot of manpower and material resources have been invested in frequent maintenance of the rollers, the rollers are used in a wide range of areas, frequent early failures, and produce harsh screams until they are stuck and damaged, making human defense difficult to prevent, and failures and shutdowns seriously restrict the belt. The normal operation of the conveyor production line. In addition, the labor intensity has increased significantly, which has caused serious harm to the health of people who often work in high dust environments.
For those who are often in contact with the construction industry, they have a certain understanding of this Impact roller group, but for people in other industries, they are unfamiliar with this product. The characteristics are also unknown. In fact, the products produced by each Impact roller group manufacturer have their unique characteristics.
Under normal circumstances, the cross section of the Impact roller is hollow, and its function is also used to transport air or some fluids. For example, we are familiar with natural gas, water, oil and gas, which are commonly used in daily life. Of course, some Solid fuel can also be transported through this Impact roller set channel.
conveyor roller parameter
| Description | CEMA, DIN, JIS, AS, SABS, ISO Standard Design & JUXIN ODM |
| Pipe | 1) Material : Q235 carbon steel equal to DIN S235JR 2) Roller Diameter : φ63.5mm ~ φ219mm / 2 1/2 inch ~ 8 5/8 inch 3) Roller Length: 150mm ~ 3000 mm 4) Thickness : 3.0 ~6.0 mm |
| Shaft | 1) Material : 45# steel equal to DIN C45 2) Cold-drawn bright round steel 3) Shaft Diameter: 20mm, 25mm, 30mm, 40mm, 45mm, 50mm |
| Bearing | 1) Single Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance 2) Brand: SKF,FAG,NSK,HRB, LYC, ZWZ or according to your requirement |
| Bearing Housing | 1) Material : Q235 carbon steel equal to DIN S235JR 2) Cold press working fit ISO M7 accuracy 3) Material thickness: 2.5mm ~ 5.0mm |
| Seals | 1) Labyrinth seal, nylon 6 material 2) JUXIN's patented product |
| Grease | 2# Lithium grease lubricant |
| Painting | 1) Ordinary painting, hot galvanized painting, Powder painting 2) Color: Black, red, yellow, blue or according to your requirement |
SPECIFICATION:
Roller Diameter: 89, 102, 108, 114, 127, 133, 140, 152, 159, 165, 178, 194, 219mm
Roller Length: 100-2400mm.
Shaft Diameter: 20, 25, 30, 35, 40, 45, 50mm
Bearing type: 6204, 6205, 6305, 6206, 6306, 6307, 6308, 6309, 6310
Standard: DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc.
FEATURES:
1. Absorbs weight and shocks;
2. High loading capacity;
3. Highly-effective labyrinth seals protected from dust & water into the bearing;
4. Designed and manufactured for a long, trouble-free life;
5. Maintenance-free, high-quality sealed ball bearing.
