Rubber Lagging Conveyor Impact Roller
Rubber Lagging Conveyor Impact Roller
Coal Mine Conveyor Rubber Lagging Impact Idler Roller

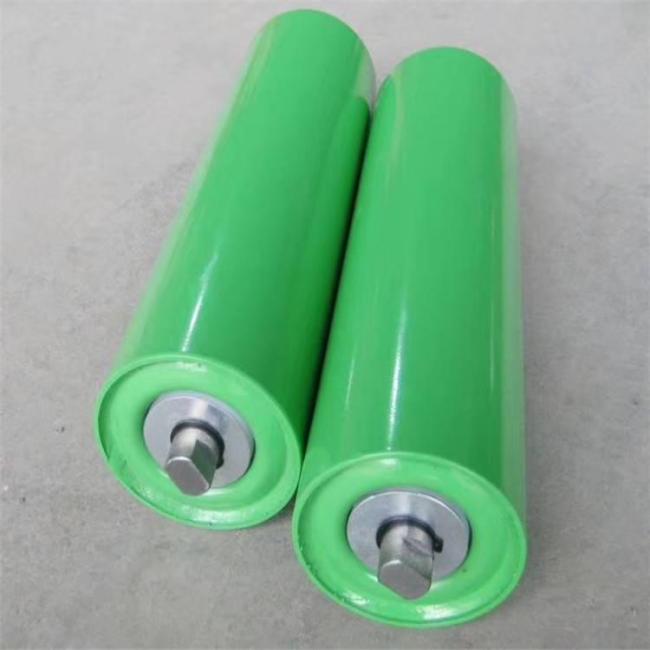

Detailed conveyor roller idler feature:
1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
conveyor roller Description
| SPECIFICATIONS | |||
| Diameter | φ89, φ102, φ108, φ114, φ127, φ133, φ139, φ152, φ159, φ165, φ194 | ||
| Length | 145mm-2800mm | ||
| Tube | Q235(GB), Q345(GB), welded with DIN2394 standed | ||
| Shaft | A3 and 45# steel(GB) | ||
| Bearing | Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance | ||
| Bearing Housing/Seat | Cold press working fit ISO M7 accuracy Deep Press steel with raw material fit DIN 1623-1624 standard |
||
| Lubricating Oil | Grade 2 or 3 long-lasting lithium greasae | ||
| Welding | Mixed gas shielded arc welding end | ||
| Painting | Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting |
||
Which industries can the rollers be used in?
1. The roller can be used in equipment in the electric power industry. It has good stability in complete equipment such as electrical energy testing and high resistance meters. We usually choose this material to stabilize electrical energy. It has good dual-resistance characteristics and will not be corroded or conductive during use. The stability is well determined, so it is universally loved by people.
2. The roller can be used in metallurgy or mining conveying equipment. This kind of rollers have strong impact resistance, they are not easy to deform in the machinery and equipment, so that the things we produce look particularly beautiful and stable. Everyone will be very satisfied with our products.
3. The roller can be used in belt conveying equipment. Because the roller is a particularly important consumable, it is easy to wear during use. The polymer roller skins we produce ensure that the surface of the roller has good lubricity at all times, so as to reduce the friction of conveying things and protect the belt Not to be damaged, but also to save energy.
Before using the roller, check the appearance carefully for any serious bumps and damage. The rotating roller should rotate flexibly and without jamming. Suitable for light loads! For heavy loads or conveyor belts that need to be started frequently, they need to be driven by chains or sprocket wheels, and double sprocket wheels when needed, as well as universal couplings and bevel gears.
