Electrostatic Painting Impact Idler Roller Q345B Motorized Drive Roller
CEMA Electrostatic Painting Impact Idler Roller Q345B Motorized Drive Roller

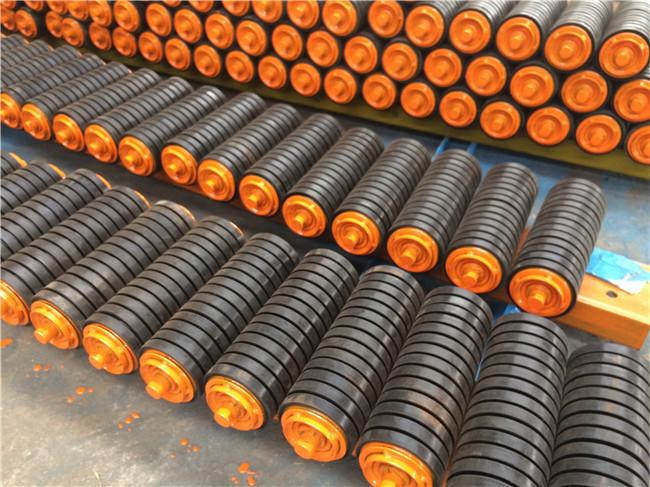

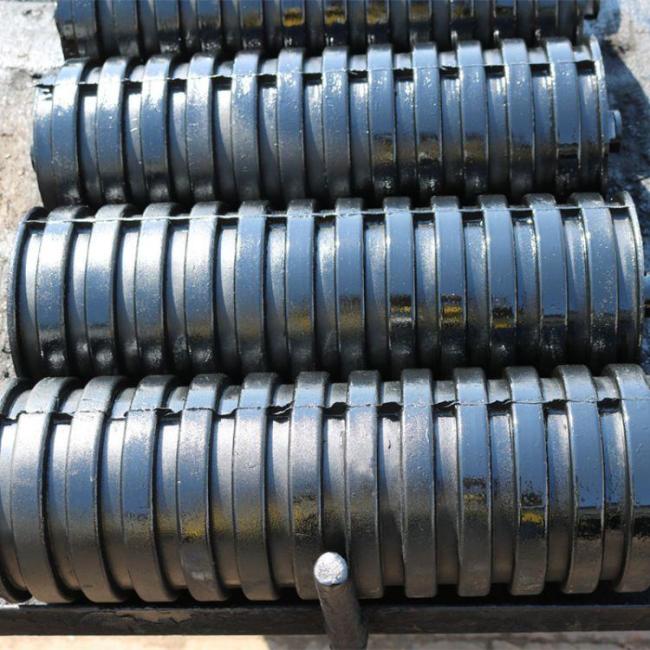

Conveyor Rubber Impact Idler Roller Coal Mine Conveyor Rubber Lagging Idler Roller
The roller is an important part of the belt conveyor. There are many types and large quantities. The function is to support the belt and reduce the running resistance of the belt
The rollers are classified into self-aligning rollers, buffer rollers, trough rollers, and parallel rollers according to their uses. The function of the self-aligning roller is to correct the deviation of the belt conveyor. Usually, a rotary groove-shaped self-aligning roller is installed on the heavy-duty section of the conveyor, and a parallel self-aligning roller is installed on the no-load section. The buffer roller is applied to the tailstock of the machine according to the actual situation. When receiving the material, it can reduce the impact of the material on the belt, which is beneficial to the service life of the long belt. The trough-shaped roller is generally composed of two side rollers and a flat roller. The groove angle is generally 30 degrees. For a detachable belt conveyor, the three rollers of the trough-shaped roller are hinged to each other, so Called hinged roller. The parallel roller is generally a long roller, which is installed at the lower end under pressure, so it is called the lower roller.
There are two types of rollers: steel and plastic rollers. There are three types of bearing seats for rollers: cast iron, stamped steel plate and phenolic plastic.
The seal of the roller can be divided into steel and plastic. Their seals are filled with grease inside. The quality of the roller directly affects the power consumption of the belt conveyor and the life of the belt. Therefore, dust-proof sealing and good lubrication are important standards for use.
The rollers account for 35% of the total cost of a belt conveyor and generate more than 70% resistance, so the quality of the rollers is particularly important.
Detailed conveyor roller idler feature:
1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
conveyor roller Description
| Product name | shock absorb rubber impact carrier roller |
| Place of Origin | Jiangsu, China (Mainland) |
| Brand Name | Double Arrow |
| Standard | CEMA / JIS / DIN / ISO |
| Certification | ISO9001/BV/SGS |
| Material | steel, SS |
| Bearing Model | UCP,UCT or others |
| Bearing Brand | HRB, LYC, ZWZ,SKF, NSK,C&U |
| Working Life | ≥30000 hours |
| Diameter | D500mm to D2000mm |
| Belt Width | B500mm to B3000mm |
| Application | coal, metallurgy, machinery, ports, electrical, chemical, foundry, building materials, food and other fields. |
| Special | can be customized according to customer or design for customer |
| Supply Ability | 500pcs per day |
| Guarantee | 12 months |
| Contract manufacture | OEM services offered, design services offered |
| Business type | Factory, welcome to visit |
Main classification of rollers:
1. According to the material, it is divided into rubber roller, ceramic roller, nylon roller and insulating roller.
2. There are mainly trough roller groups, various parallel roller groups, various self-aligning roller groups, and various buffer roller groups.
(1) Trough rollers include ordinary rollers, forward tilt rollers, quick-change bearing rollers, hanging rollers, triple chain rollers, reversible rollers, variable groove angle rollers, and transitional rollers. Roller, V-shaped roller, etc.;
(2) Parallel idlers include ordinary idlers, comb idlers, forward inclined idlers, steel rubber idlers, spiral idlers, etc.;
(3) Self-aligning rollers include universal rollers, friction reversible rollers, powerful rollers, cone rollers, spiral rollers, combined rollers, etc.;
(4) Buffer rollers include spring plate rollers, buffer ring rollers, powerful buffer rollers, adjustable elastic rollers, hanging rollers, etc.
