6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
Conveyor Drive Pulley Diamond Groove Lagging Sheet
Plain Rubber Pulley Lagging VS Diamond Rubber Pulley Lagging
Plain rubber pulley lagging is generally used on non-drive pulleys to offer greater traction for the conveyor belt without excessively increasing friction, which could cause the belt to wear faster.

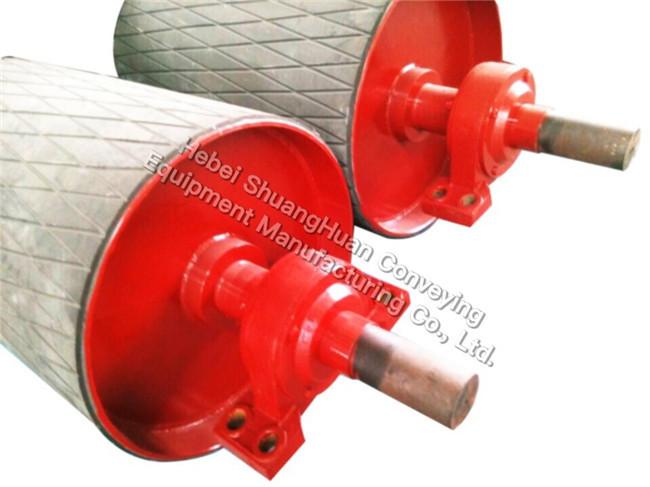

Diamond rubber pulley lagging, another rubber lagging product, which is generally applied to pulleys that need more friction to the conveyor belt. The diamond grooved rubber is more flexible comparing with plain rubber.
Gaps in the rubber allow the lagging excess space to bend and move with the conveyor belt. The increased flexibility allows the rubber to maintain contact with the same part of the belt and prevents the belt from sliding. And the diamond grooved rubber lagging can drop water off the pulley, further get the belt away from slipping and material build up.
Why Use Pulley Lagging?
Pulley lagging is a layer of material bonded to the surface of a conveyor pulley. The pulley lagging is used to protect the conveyor pulley surface from damaging, increase the friction with the conveyor belt, extend the service life of the conveyor belt and conveyor pulley.
There are several different types of pulley lagging, such as plain rubber pulley lagging sheet, diamond pulley lagging sheet and ceramic pulley lagging sheet. Each type of pulley lagging sheet has different variations, specifications and are used for a variety of purposes.
Key Features of steel pipe bend pulley drum
(1). Steady running, reliable quality and reduce maintenance;
conveyor pulley Description
| Product name | conveyor drum pulley |
| Place of Origin | hebei, China (Mainland) |
| Standard | CEMA / JIS / DIN / ISO |
| Certification | ISO9001/BV/SGS |
| Material | steel, SS |
| Bearing Model | UCP,UCT or others |
| Bearing Brand | HRB, LYC, ZWZ,SKF, NSK,C&U |
| Working Life | ≥30000 hours |
| Diameter | D500mm to D2000mm |
| Belt Width | B500mm to B3000mm |
| Application | coal, metallurgy, machinery, ports, electrical, chemical, foundry, building materials, food and other fields. |
| Special | can be customized according to customer or design for customer |
| Supply Ability | 50pcs per day |
| Guarantee | 12 months |
| Contract manufacture | OEM services offered, design services offered |
| Business type | Factory, welcome to visit |
| Drum Pulleys | ||||
| 30''-63'' FACE WIDTH | ||||
| DIA. | XT HUB | QD HUB | MAX.BORE | FACE WIDTH (INCHES) |
| 10'' | XT25 | SF | 2 1/2 | 30,32,36,38,40,42,44,46,51 |
| XT30 | E | 3 | ||
| XT35 | F | 3 1/2 | ||
| 12'' | XT25 | SF | 2 1/2 | 30,32,36,38,40,42,44,46,51 |
| XT30 | E | 3 | ||
| XT35 | F | 3 1/2 | ||
| 14'' | XT25 | SF | 2 1/2 | 30,32,36,38,40,42,44,46,51 |
| XT30 | E | 3 | ||
| XT35 | F | 3 1/2 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT40 | JS | 4 | ||
| 16'' | XT25 | SF | 2 1/2 | 30,32,36 |
| XT30 | E | 3 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT35 | F | 3 1/2 | ||
| XT40 | JS | 4 | ||
| XT45 | MS | 4 1/2 | 38,40,42,44,46,51,54,57,60,63 | |
| 18'' | XT25 | SF | 2 1/2 | 30,32 |
| XT30 | E | 3 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT35 | F | 3 1/2 | ||
| XT40 | JS | 4 | ||
| XT45 | MS | 4 1/2 | ||
| XT50 | NS | 5 | 38,40,42,44,46,51,54,57,60,63 | |
| 20'' | XT25 | SF | 2 1/2 | 30,32,36 |
| XT30 | E | 3 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT35 | F | 3 1/2 | ||
| XT40 | JS | 4 | ||
| XT45 | MS | 4 1/2 | ||
| XT50 | NS | 5 | 32,36,38,40,42,44,46,51,54,57,60,63 | |
| 24'' | XT30 | E | 3 | 30,32 |
| XT35 | F | 3 1/2 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT40 | JS | 4 | ||
| XT45 | MS | 4 1/2 | ||
| XT50 | NS | 5 | ||
| XT60 | PS | 6 | 36,38,40,42,44,46,51,54,57,60,63 | |
| 30'' | XT30 | E | 3 | 30,32,36 |
| XT35 | F | 3 1/2 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT40 | JS | 4 | ||
| XT45 | MS | 4 1/2 | ||
| XT50 | NS | 5 | ||
| XT60 | PS | 6 | ||
| XT70 | WS | 7 | 44,46,51,54,57,60,63 | |
| XT80 | WS | 8 | 60,63 | |
| 36'' | XT35 | F | 3 1/2 | 30,32,36 |
| XT40 | JS | 4 | 30,32,36,38,40,42,44,46,51,54,57,60,63 | |
| XT45 | MS | 4 1/2 | ||
| XT50 | NS | 5 | ||
| XT60 | PS | 6 | ||
| XT70 | WS | 7 | 36,38,40,42,44,46,51,54,57,60,63 | |
| XT80 | WS | 8 | 54,57,60,63 | |

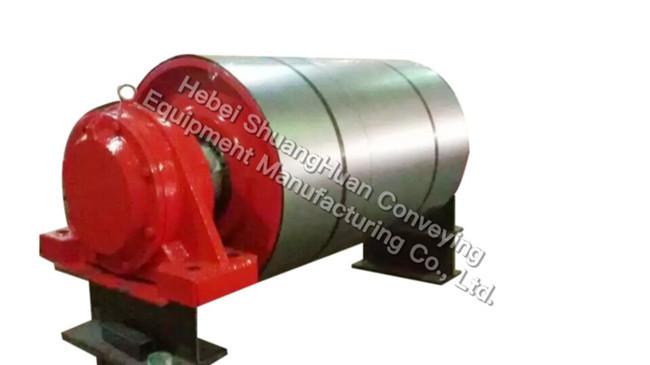

Drive/Head Pulley – A conveyor pulley used for the purpose of driving a conveyor belt. Typically mounted in external bearings anddriven by an external drive source.
Return/Tail Pulley – A conveyor pulley used for the purpose of redirecting a conveyor belt back to the drive pulley.
Tail pulleys can utilize internal bearings or can be mounted in external bearings and are typically located at the end of the conveyor bed.
Snub Pulley – A conveyor pulley used to increase belt wrap around a drive pulley, typically for the purpose of improving traction.
Take - Up Pulley– A conveyor pulley used to remove slack and provide tension to a conveyor belt. Take-Up pulleys are more common to conveyors of longer lengths.
Bend Pulley – A conveyor pulley used to redirect the belt and provide belt tension where bends occur in the conveyor system.
Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: carbon steel, Rubber , nylon etc.
Belt width: from 300mm to 2400mm
