TD75 Wear Resistant Removable Head Snub Pulley In Belt Conveyor
Electric Pulley Drum / Roller is a driving device for fixed and mobile belt conveyors. As the power of belt conveyors and lifting equipment, electric pulley drums are widely used in mining, metallurgy, chemical, coal, building materials, electric power, food and transportation sectors.
The electric drum has many advantages such as:
Compact structure, high transmission efficiency, low noise, long service life, stable operation, reliable operation, good sealing performance, small space occupation and convenient installation, and is suitable for working under various harsh environmental conditions.
Key Features of conveyor pulleys
1. Steady running, reliable quality and reduce maintenance;
2. Less movement longitudinally, rotating smoothly, extends the life span;
3. Various bearing housing and sealing structure are available for the customers choice;
4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
5. Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.
our conveyor Timing Belt pulley surface can be made in :
1) steel smooth surface conveyor bend pulley used for low-power, small belt width and dry working condition;
2) rubber smooth surface conveyor bend pulley;

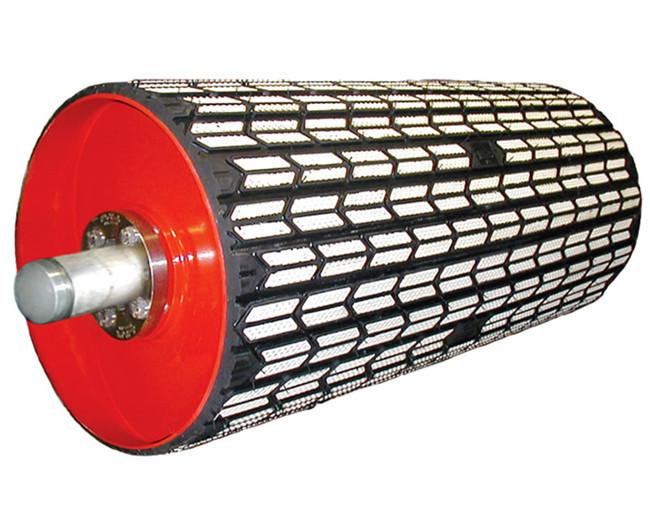

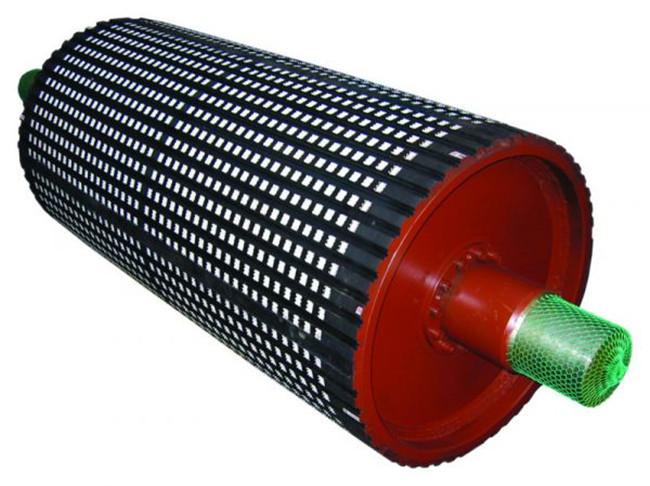

3) herringbone rubber surface conveyor bend pulley - coefficient of friction, slip resistance and good drainage;
4) diamond rubber surface lozenge conveyor bend pulley for bi-directional running conveyor;
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
conveyor pulley Description
| Model | TYD75 Conveyor Pulley |
| Material | Stainless Steel, Galvanized carbon steel |
| Pulley Diameter | 320, 400, 500, 630, 800,1000, 1250mm |
| Conveyor Belt Width | 500-2000mm |
| Power Range | 1.5, 2.2, 3, 4, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45 kw |
| Velocity of pulley surface | 0.8 ~ 4.0 m/s |
| Rubber Thickness | 6-12mm |
| Surface | smooth steel / rubber lagging |
| Application | Coal mining, Harbor, steel industry, cement industry and so on. |
| Parameter of conveyor drum pulley | |||
| Type | Belt width(mm) | Standard diameter(mm) | Length(mm) |
|
Driving pulley, bend pulley |
500 | 500 |
Length of pulley depends on the width of conveyo belt |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| 1200 | 800~1150 | ||
| 1400 | 1000~1350 | ||
| 1600 | 1150~1600 | ||
| 1800 | 1150~1800 | ||
| 2000 | 1350~2000 | ||
| 2200 | 1600~2200 | ||
| 2400 | 1800~2400 | ||
Magnetic electric motor pulley:
1. Simple and compact structure, small occupied space.
2. Good sealing, suitable for workplaces with large dust concentration and wet and muddy.
3. Easy to use and maintain, safe and reliable operation and long service life.
4. Low energy consumption and easy centralized control.
5. Can meet a variety of backstop, brake, rubber and other requirements.
