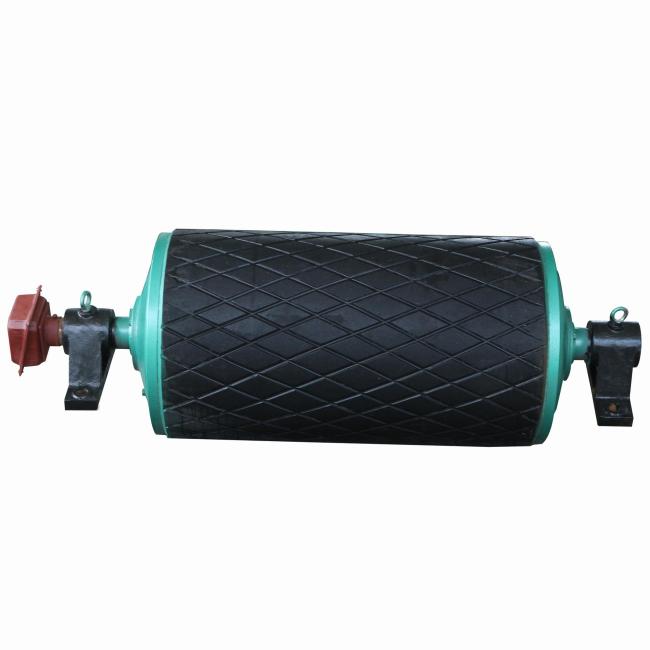

Diamond Rubber Motorized Conveyor Pulley For Harbor Screening Mining
Belt Conveyor is a kind of conveying machine which transport materials from one place to another place continuously. Belt conveyor machine consist of conveyor frame, conveyor belt, conveyor pulley, conveyor rollers, tension devices, driving unit and other components etc. Belt conveyor system can transport materials in bulk and bagged, such as stone, sand, coal, concrete, cement, gravel, fertilizer, mineral ore, limestone, coke, sawdust, wood chip, bulk material, grain, corn flakes, carbon black, etc.
The electric drum has many advantages such as:
Compact structure, high transmission efficiency, low noise, long service life, stable operation, reliable operation, good sealing performance, small space occupation and convenient installation, and is suitable for working under various harsh environmental conditions.
Key Features of conveyor pulleys
1. Steady running, reliable quality and reduce maintenance;
2. Less movement longitudinally, rotating smoothly, extends the life span;
3. Various bearing housing and sealing structure are available for the customers choice;
4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
5. Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.
Advantages and Features
1. Conveyor length can be customized according to your need.
2. 0° - 30° inclination to suit the on-site conditions.
3. Belt width can be 500-2400mm as your require.
4. Low horsepower compared with other types of conveyor
5. Belt conveyor cleaner is installed to clean the conveyor belt.
6. Corridors are built along the belt conveyor for inspection and maintenance.
7. Conveyor rollers are manufactured by our special roller production line, available of types of roller to ensure smooth conveyor system.
8. Conveyor belt brand is YOKOHAMA, high quality and reliable.
9. Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
10.Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, , NSK, SKF etc.
conveyor pulley Description
| Type | Belt width(mm) | Standard Diameter(mm) | Length(mm) |
| Drive Pulley | 500 | 500 | Length of the pulley depends on the belt width of the conveyor |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| 1200 | 800~1150 | ||
| 1400 | 1000~1350 | ||
| 1600 | 1150~1600 | ||
| 1800 | 1150~1800 | ||
| 2000 | 1350~2000 | ||
| 2200 | 1600~2200 | ||
| 2400 | 1800~2400 | ||
| Bend Pully | 500 | 250~500 | |
| 650 | 250~630 | ||
| 800 | 250~1000 | ||
| 1000 | 250~1600 | ||
| 1200 | 250~1600 | ||
| 1400 | 315~1600 | ||
| 1600 | 400~1600 | ||
| 1800 | 400~1600 | ||
| 2000 | 500~1600 | ||
| 2200 | 630~1600 | ||
| 2400 | 800~1600 |
| Parameter of conveyor drum pulley | |||
| Type | Belt width(mm) | Standard diameter(mm) | Length(mm) |
|
Driving pulley, |
500 | 500 |
Length of pulley |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| 1200 | 800~1150 | ||
| 1400 | 1000~1350 | ||
| 1600 | 1150~1600 | ||
| 1800 | 1150~1800 | ||
| 2000 | 1350~2000 | ||
| 2200 | 1600~2200 | ||
| 2400 | 1800~2400 | ||

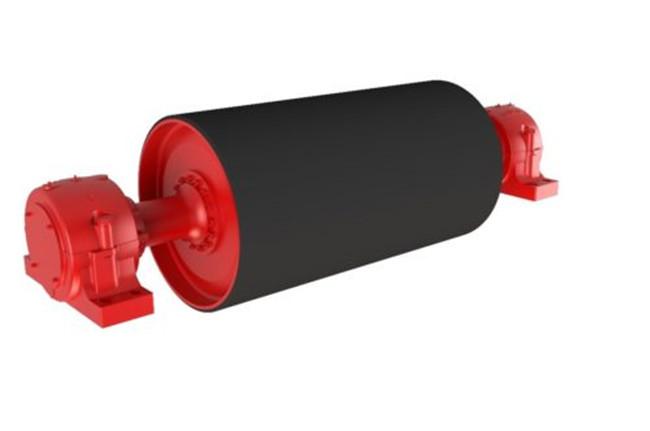

Magnetic electric motor pulley:
1. Simple and compact structure, small occupied space.
2. Good sealing, suitable for workplaces with large dust concentration and wet and muddy.
3. Easy to use and maintain, safe and reliable operation and long service life.
4. Low energy consumption and easy centralized control.
5. Can meet a variety of backstop, brake, rubber and other requirements.
