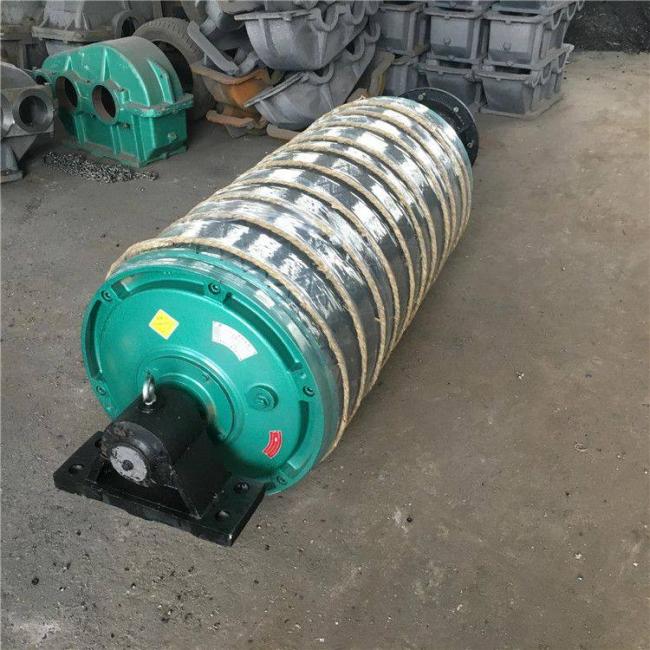

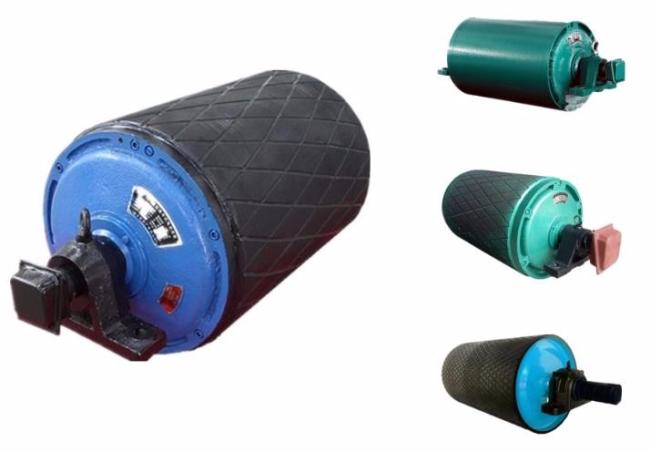

Waterproof 500mm Motorized Conveyor Pulley
The motorized pulley has many advantages such as compact structure,small footprint,easy installation,longerlife,high transmission efciency,low noise,smooth and reliabe operation.It can work in the wet,muddy,dusty and other harsh conditions.
The explosion-proof electric roller is used as the driving device of conveying machinery in the explosive mixture environment formed by combustible gas, gas, dust, etc.
The product is an ideal driving device for various fixed belt conveyors. It adopts planetary cycloid reducer inside of the housing, which has the characteristics of large bearing capacity, strong overload capacity, stable transmission, low noise, long service life, etc. It can meet the requirements of various backstop and rubber coating.
The turning pulley is used for changing the direction of the belt running or increasing the wrap angle between theconveyor belt and the driving pulley As per different carrying capacities,the bend pulley can be divided into three calegories:light duty,medium duty and heaw cluty.The pulley which is used for extending the contact surface,is usualy used for belowor equal to 45 degree bending.The sutace treatment of the bend puley can be smooth stel and fat rubber lagging.
- -15ºC~40ºC The ambient temperature is - 15 ºC ~ 40 ºC;
- 1000meters Altitude not more than 1000M;
- 60ºC The temperature of conveying materials shall not exceed 60 ºC;
- frequency:50Hz;
- Voltage: 380/660V, 660/1140V.
It can contain all electrical components that are easy to cause sparks in the flameproof enclosure;
- Compact structure, small space;
- Easy to use and maintain, operating safely and reliable, longer service life
- It can meet the requirements of various backstop, braking, rubber coating, etc.
conveyor pulley Description
| Model No. | Belt Width | Width of blade | AOL(G) | Pulley Dia. | L1 | L2 |
| DCCD500S-1 | 500 | 400 | 1200 |
500 |
326 |
195 729 |
| DCCD650S-1 | 650 | 600 | 1300 | |||
| DCCD800S-1 | 800 | 800 | 1500 | |||
| DCCD1000S-1 | 1000 | 1000 | 1700 | |||
| DCCD1200S-1 | 1200 | 1200 | 1900 | |||
| DCCD1400S-1 | 1400 | 1400 | 2100 | |||
| DCCD1600S-1 | 1600 | 1600 | 2300 | |||
| DCCD1800S-1 | 1800 | 1800 | 2500 | |||
| DCCD2000S-1 | 2000 | 2000 | 2700 | |||
| DCCD2200S-1 | 2200 | 2200 | 2900 |
| Type | Belt width(mm) | Standard diameter(mm) | Length(mm) |
| drive pulley , tail pulley, snub pulley, take up pulley etc. | 500 | 500 | Length of pulley according to different belt width and accept custamized size |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| Material: | steel, SS | ||
| Bearing Model: | UCP,UCT or others | ||
| Bearing Brand: | HRB, LYC, ZWZ,SKF, NSK,C&U | ||
| Working Life: | ≥30000 hours | ||
| Diameter: | D320mm to D630mm | ||
| Belt Width: | B500mm to B1000mm | ||
| Application: | recycling industry | ||
| power industry | |||
| parcel transport industry | |||
| petro industry | |||
| coal mining industry | |||
| cement concrete industry | |||
| machining industry | |||
| Supply Ability: | 1pcs per day | ||
| Certificate: | ISO9001:2015, BV, SGS | ||
Professional advantage:
More than 10 years’ professional producing experience.
Quality Assurance,price advantage:
We have our own factory, you can get a competitive and reasonable price with high quality.
Service advantage:
We can reply your Enquiry timely and effective.
High efficiency:
Once our customers release their orders, we will arrange the production and shipping fastly .
