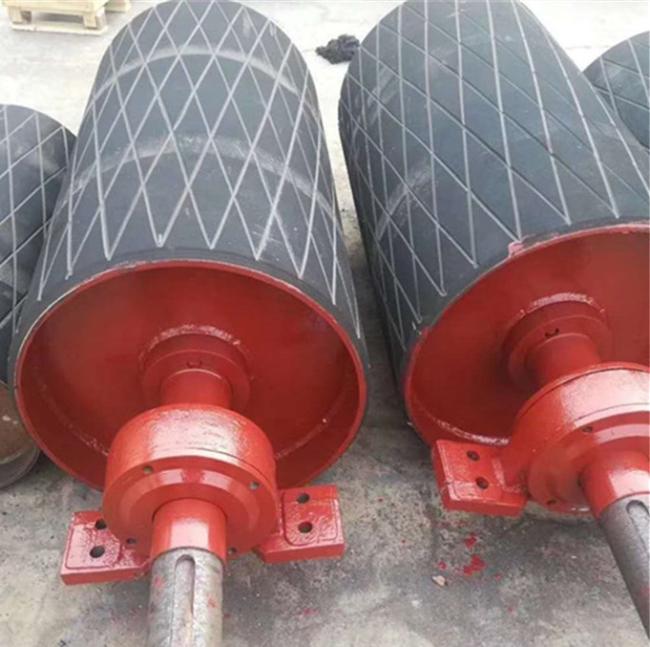

Smooth Surface 630mm Rubber Lagging Conveyor Pulleys High Safety Factor
Conveyor system projects
1. The highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering are our basic missions, your satisfaction is our ultimate goal.
2. Customized Products are highly welcome
3. Free Sample is available
Finish Diameter - The outside diameter of a coated pulley (core diameter + 2 times the coating/wrap thickness).
Face Width - The length of a pulley's cylindrical body. This area is intended to act as the contact surface for the conveyor belt.
Wall/Rim Thickness- The initial thickness of the tube, pipe, or formed plate that makes up the cylindrical body of the pulley.
End Disks - The plates welded on the ends of a pulley which act as the medium between the hub and rim.
Crown/Profile- A change in the shape of the pulley face designed for the purpose of enhancing belt tracking.
Shaft/Axle - The mounting mechanism for the pulley assembly.
Hub - The point of connection between the shaft and end disk or pulley wall.
Bore Diameter - The inner diameter of a pulley at the point where the shaft is inserted
Bearing Centers - The distance between the center lines of each bearing race in which a pulley is mounted.
Hub Centers - The distance between the center line of each hub contact surface.
Safety Factor - The capacity of a system or component to perform beyond its expected load
conveyor pulley Description
| Driving Pulley (rubber surface) | |
| Belt Width | Standard Diameter of Pulley |
| 500 mm | 500mm |
| 650 mm | 500mm,630 mm |
| 800 mm | 500mm,630mm,800mm,1000mm,1250mm,1400 mm |
| 1000 mm | 630mm,800mm,1000mm,1250mm,1400 mm |
| 1200 mm | 630mm,800mm,1000mm,1250mm,1400 mm |
| 1400 mm | 630mm,800mm,1000mm,1250mm,1400 mm |
| 1600 mm | 630mm,800mm,1000mm,1250mm,1400 mm |
| 1800 mm | 630mm,800mm,1000mm,1250mm,1400 mm |
| 2000 mm | 800mm,1000mm,1250mm,1400 mm |
| 2200 mm | 1000mm,1250mm,1400 mm |
| 2400 mm | 1000mm,1250mm,1400 mm |
| Bend Pulley (smooth surface & rubber surface) | |
| Belt Width | Standard Diameter of Pulley (mm) |
| 500 mm | 250,315,400,500 |
| 650 mm | 250,315,400,500,630 |
| 800 mm | 250,315,400,500,630,800,1000,1250 |
| 1000 mm | 250,315,400,500,630,800,1000,1250,1400 |
| 1200 mm | 250,315,400,500,630,800,1000,1250,1400 |
| 1400 mm | 315,400,500,630,800,1000,1250,1400 |
| 1600 mm | 400,500,630,800,1000,1250,1400 |
| 1800 mm | 400,500,630,800,1000,1250,1400 |
| 2000 mm | 500,630,800,1000,1250,1400 |
| 2200 mm | 630,800,1000,1250,1400 |
| 2400 mm | 800,1000,1250,1400 |
Advantages
1. Wide range to meet even the toughest demands standard range for light- and medium-duty as well as specially engineered and extra-heavy-duty pulleys for special applications.
2. Precision manufacture and accurate assembly for low maintenance for continued operation, low total cost of ownership.
3. Advanced pulley design process incorporating Finite Element Analysis ensures all Joyroll pulleys are designed to world's best practice for consistent performance.Joyroll pulleys effectively and reliably transfer the drive motor load to the belt and provide support for changes in the belt direction.
4. Optimized, standardized bearing centers.
5. Weight-optimized designs.
6. Efficient locking elements.
7. High loading capacities.
