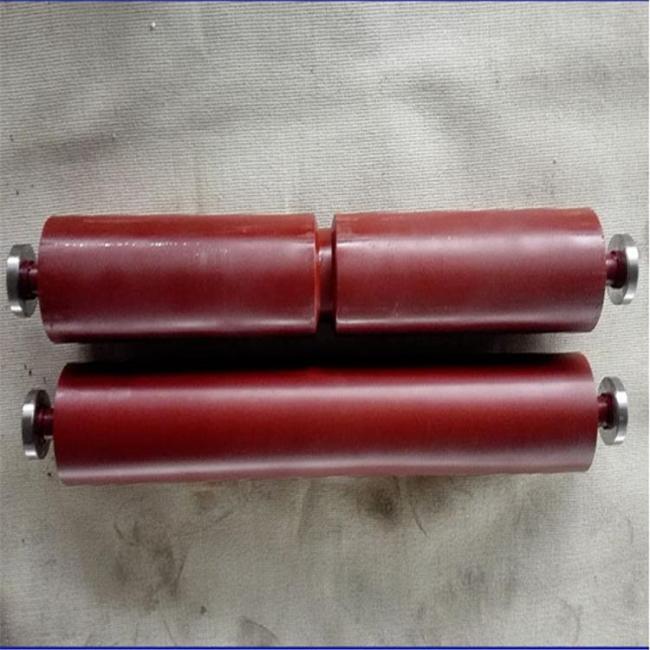

Plastic Housing 12mm Heavy Duty Conveyor Rollers Q235 Carbon Steel
Plastic Housing 12mm dia Heavy Duty Conveyor Rollers Q235 Carbon Steel
Plastic Housing Carrier Roller With Mining Heavy Duty Conveyor Roller Idler
Duty Conveyor Roller Idler is one of the most important parts of the belt conveyor, and its performance directly affects the life of the Zhengtai conveyor. How to judge the quality of the idler?
(1) The radial runout index of the idler roller determines the running condition of the belt conveyor;
(2) The protective performance of the roller determines the environment, conditions and the service life of the roller that the belt conveyor can use;
(3) The dynamic rotation resistance of the idler roller determines the operating power of the belt conveyor;
(4) The comprehensive performance of the roller not only determines the length of its own life, but also determines the life of the entire belt conveyor.
It can be seen that rollers play an extremely important role in the use of belt conveyors. Therefore, producing high-quality belt conveyor rollers is an important link in the production process of belt conveyors. Therefore, Yingfan believes that the level of assembly technology in the production process of the idler roller determines the final performance of the idler roller, that is, the top priority of the performance of the entire belt conveyor.
Main Features
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10) Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
roller design
| Bandwidth | roller | RKM |
|||||||||||||
| D | L | RKM-RS /LS/NS |
Friction roller model | Bearing /C3 |
|||||||||||
| 500 | 89 | 200 | RS89-204-200 | RSF89*204*230 | 6204 | 740 | 912 | 135.5 | 220 | 350 | 170 | 130 | M12 | 48 | 50C314M |
| 650 | 89 | 250 | RS89-204-250 | RSF89*204*280 | 6204 | 890 | 1055 | 135.5 | 235 | 379 | 51 | 65C314M | |||
| 108 | RS108-205-280 | RSF108*205*280 | 6205 | 1100 | 146 | 265 | 381 | 52 | 65C414M | ||||||
| 800 | 89 | 315 | RS89-204-280 | RSF89*204*323 | 6204 | 1090 | 1183 | 135.5 | 245 | 414 | 59 | 80C314M | |||
| 108 | RS108-205-280 | RSF108*205*342 | 6205 | 1243 | 146 | 270 | 442 | 73 | 80C414M | ||||||
| 1000 | 108 | 380 | RS108-205-380 | RSF108*205*405 | 6205 | 1290 | 1439 | 159 | 300 | 492 | 220 | 170 | M16 | 86 | 100C414M |
| 133 | RS133-305-380 | RSF133*305*412 | 6305 | 1520 | 173.5 | 325 | 540 | 107 | 100C514M | ||||||
| 1200 | 108 | 465 | RS108-205-465 | RSF108*205*470 | 6205 | 1540 | 1639 | 176 | 335 | 544 | 260 | 200 | M16 | 100 | 120C414M |
| 133 | RS133-305-465 | RSF133*305*470 | 6305 | 1715 | 190 | 360 | 590 | 120 | 120C514M | ||||||
| 159 | RS159-306-465 | RSF159*306*470 | 6306 | 1717 | 207 | 390 | 618 | 125 | 120C614M | ||||||
| 1400 | 108 | 530 | RS108-205-530 | RSF108*205*560 | 6205 | 1740 | 1814 | 184 | 350 | 590 | 280 | 220 | M16 | 102 | 140C414M |
| 133 | RS133-305-530 | RSF133*305*560 | 6305 | 1887 | 198 | 380 | 635 | 130 | 140C514M | ||||||
| 159 | RS159-306-530 | RSF159*306*560 | 6306 | 1895 | 215 | 410 | 653 | 136 | 140C614M | ||||||
| 1600 | 159 | 630 | RS159-306-600 | RSF159*306*630 | 6306 | 1980 | 2050 | 247 | 450 | 780 | 300 | 240 | M16 | 179 | 160C714M |
| RS159-307-600 | RSF159*306*630 | 6307 | 2050 | 247 | 194 | 160C814M | |||||||||
Product Description:
1. As the typical product in the gravity rolller series, it is widely applied, especially in the carton conveyring area. e.g airport luggage handling and logistics distribution center.
2. Precesion ball bearing polymer bearing housing , end cap form the bearing unit which is very important . It is not only for good looding but also further more the smooth and quiet running.
3. The end cap of roller resist dust and water splash well in operation environment.
4. The design of pwlymer bearing housing makes it able to operate in some special environment.
5. The lubrication method of bearing could be oil lubricating or grease lubricating as requirement
6. Suitable for the high speed conveying. Speed could vary according to diameter and length of roller, Max.speed up to 120m/min.
7. Semi-precision bearing for option, smooth running, be used for gravity roller conveyor in low speed(<30m/min)
8. Temperatue range: 0 to +40ºC
