Mining 600mm Conveyor Drum Pulley Ceramic Rubber Lagging Sheet
Mining 600mm Conveyor Drum Pulley Ceramic Rubber Lagging Sheet
Mining Conveyor Belt Conveyor Drum Ceramic Rubber Pulley Lagging Sheet

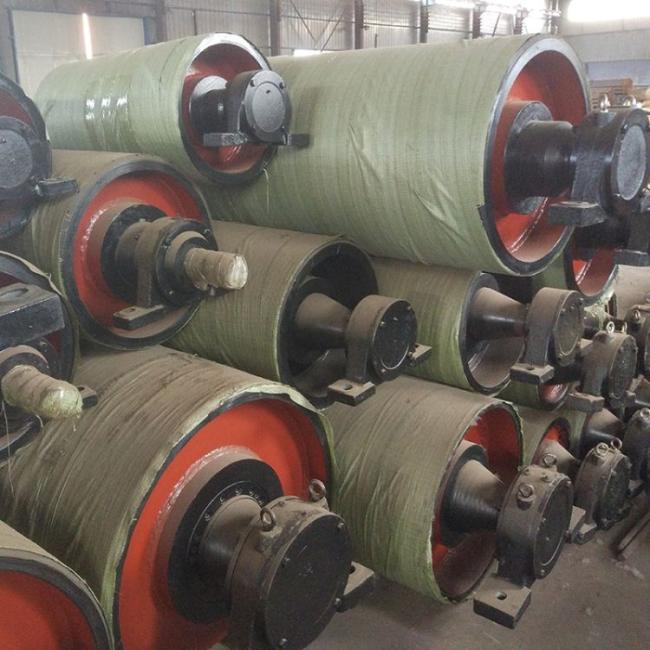

There are manyhigh aluminaceramic lagging pulley lined belt rollersin the steel industry, cement,mining ,port and so on. Usually,the rollers are wrapped by a layer of rubber to prevent them from slipping. But usually,if the roller works in the water environment, the material are easy adhere to the belt or roller. Then it can be easy slip.
Our Kingceraceramic lagging pulleyare adopt the new methods. We valcanized the grain shaped ceramic into the rubber and wrap onto the roller. it not only prevent the roller from slip, can also prolong the roller's service life span.
Design Features
1. MSHA approved for mine use – meets all requirements for flame-resistant solid products taken into mines. Acceptance Marking No. MSHA IC -174/2
2. Increase Productivity – by delivering increased traction between the conveyor belt and pulley, allows for lower belt tension than with rubber lagging.
3. Improved Conveyor Belt Tracking – due to the Arrowhead patterns self-cleaning ability, which reduces the material build-up and thereby eliminates the major source of conveyor belt misalignment.
4. Bonding Strength – that is superior to others, due to 3mm of our neoprene compound vulcanized into the bottom-side of the lagging.
5. Superior Wear – ability in abrasive or highly wet or dry applications as seen in below ground and above ground mining.
6. Easy Installation – can be done in place, on the plant site, at your local distributor or at the pulley manufacturer. Each strip is 10” (250mm) wide x pulley face (see chart).
7. Tile – fully enclosed by rubber with rounded corners to allow for better adhesion between the rubber and the tile.
8. Available – in 5/8”and 1” thicknesses in both SBR and MSHA grade rubber compounds.
Product Paramenters
| PART NUMBER | BELT WIDTH IN. | BELT WIDTH MM. | THICKNESS | INCHES CERAMIC | INCHES RUBBER | WEIGHT LBS |
|---|---|---|---|---|---|---|
| ASG-10X24-CL | 24 | 600 | 1/2" | 24-7/8" | 39-1/2" | 9 |
| ASG-10X30-CL | 30 | 750 | 1/2" | 31-1/4" | 47" | 11 |
| ASG-10X36-CL | 36 | 900 | 1/2" | 36-1/4" | 51-1/2" | 13 |
| ASG-10X42-CL | 42 | 1070 | 1/2" | 41-1/8" | 56-1/2" | 15 |
| ASG-10X48-CL | 48 | 1200 | 1/2" | 48-1/2" | 64-1/2" | 17 |
| ASG-10X54-CL | 54 | 1350 | 1/2" | 55-7/8" | 71-1/4" | 19 |
| ASG-10X60-CL | 60 | 1500 | 1/2" | 60-3/4" | 76" | 21 |
| ASG-10X72-CL | 72 | 1800 | 1/2" | 73-1/8" | 89" | 23 |
| ASG-10X84-CL | 84 | 2100 | 1/2" | 83-1/8" | 99" | 33 |
Advantage of our conveyor roller:
a) Easy installation and nice flexibility.
b) Strong construction and perfect dynamic balance.
c) Reduce vibration and 20% lifetime extension of belt.
d) Extremely low roundness and low friction coefficient.
e) Heavy-duty carrying capacity and definitely water/dust proof.
f) Powder coating makes the roller high wear resistance and good-looking.
g) Strict inspection standard ensures our high quality product.
