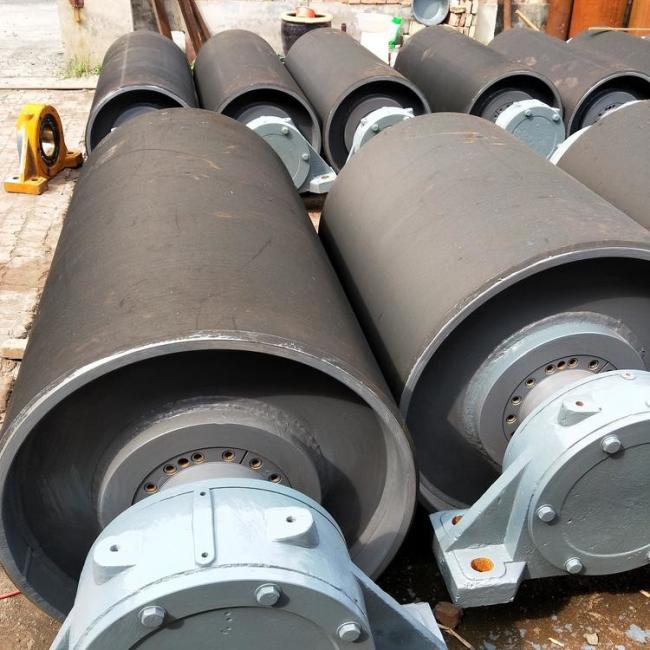

SGS Rubber Lagging Head Pulley And Tail Pulley Oil Resistant
Rubber pulley lagging refers to the layer of rubber that is bonded to the shell of a conveyor pulley. Its purpose is to protect the shell of the pulley from damage, increase friction with the conveyor belt and dispense water off the pulley.
There are several different types of pulley lagging such as plain or grooved rubber lagging and ceramic lagging, which each have different variations, specifications and purposes.
Pulley Lagging is important in a belt conveying transportation system parts and components, coated rubber roller can effectively improve the operation of the transmission system, to protect metal roller from the wear and tear, can increase the friction of rubber surface, can effectively prevent the sliding friction between roller and belt.Can reduce the belt slip,reduce material bonded on the surface of the roller.So as to reduce the belt running deviation and wear and tear, improve operational efficiency, make the roller and belt synchronization operation, so as to ensure the belt operate efficiently and large capacity.
Rubber Pulley Lagging Type:
1. Plain Surface Pulley Lagging, thickness 10mm 12mm 15mm 20mm
2. Diamond Pulley Lagging, thickness 10mm 12mm 15mm 20mm
Thermal sulfide type: Traditional heat vulcanized rubber bag
Cold cure type:The new cold vulcanized rubber roller bag
conveyor pulley Description
| ITEM | Ceramic hardness (Vivtorinox) | Rubber elongation rate | Rubber hardness | The tensile strength of ceramic rubber | Ceramic roller coated heat resistance |
| criteria | 1800 | 400% | 60±5 | 150kg/cm2 | 100℃ |
| Friction coefficient in different conditions | |||
| working condition | Iron and steel (non coated rubber) | coated rubber | coated ceramic |
| dry | 0.35-0.4 | 0.4-0.45 | 0.75-0.85 |
| damp | 0.1-0.15 | 0.33-0.38 | 0.5-0.8 |
| muddy | 0.1-0.15 | 0.22-0.30 | 0.45-0.55 |
| Series No. | Application Range | Size(L*W*T) |
| A1 | Conveyor capacity > 1500T/h, or conveying large stone materials | 1830*138* (15 - 22) |
| A2 | Flame retardant lagging for coal mining industry | 1830*138* (15 - 22) |
| A3 | Wear resistant lagging for conveying capacity < 1000T/h | 1830*138* (15 - 22) |
| A4 | Lagging for non driving drum | 1830*138* (15 - 22) |
| A5 | Slide ceramic lagging for extreme conditions | 1830*138* (15 - 22) |
| A6 | Custom lagging for low / high temperature conditions | 1830*138* (15 - 22) |
| Remarks | Crown type lagging is available based on A1, A2, A3 | 1830*138* (15 - 22) |
| Description |
conveyor pulley,wing pulley,tail pulley,self-cleaning pulley,Heavy Duty Wing Pulleys |
| Color | customized |
| Pipe Length | as customer request or international standard |
| lagging material | plain |
| Application industry | Mining,Steel mill,Cement plant,Power plant,Chemical Plant,Sea Port,Storage |
| Standard | DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc. |
(a) Shaft: Bright drawn steel to required bearing tolerance
(b) Shaft end: Both ends of tube are simultaneously machined and chamfered
(c) Bearing: Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
(d) Seals: Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal
(e) Lubrication: Grease is lithium soap type grease with rust inhibitors
(f) Welding: Mixed gas shielded arc welding end
(g) Our roller saves on repair and maintenance costs of the conveyor belt due to the concentric design which decreases vibration
