Gost Long Life 415v Metal Conveyor Rollers For Material Handling Equipment

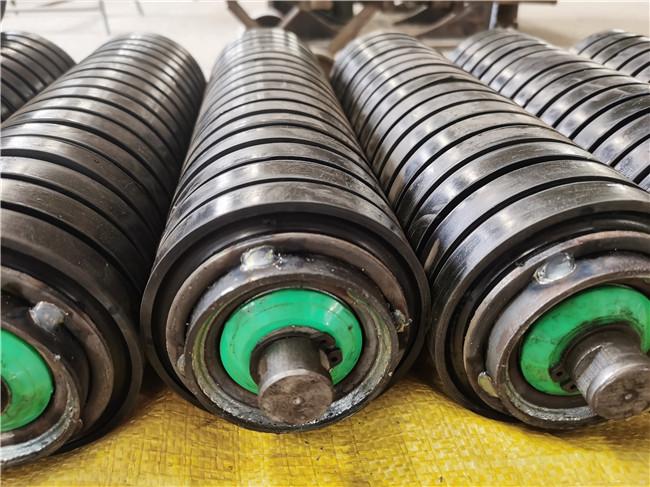

Long Life Belt Conveyor Impact Idler Roller For Material Handling Equipment
Impact rollers are widely used in mining. The special polymer material for roller body has mechanical properties similar to bronze, has good abrasion resistance, and has good self-lubricating properties and does not damage the belt. During use, damage will inevitably occur. Because most of the belt conveyors work in the environment with serious dust pollution and corrosiveness, especially the wear of some hard particles on the roller tube body is extraordinary. Although a lot of manpower and material resources have been invested in frequent maintenance of the rollers, the rollers are used in a wide range of areas, frequent early failures, and produce harsh screams until they are stuck and damaged, making human defense difficult to prevent, and failures and shutdowns seriously restrict the belt. The normal operation of the conveyor production line. In addition, the labor intensity has increased significantly, which has caused serious harm to the health of people who often work in high dust environments.
conveyor roller parameter
| Item | TFP Rubber ring roller/idler/pulley |
| Brand | Tengfei (TFP) |
| Rubber Material | Nature rubber, NBR, PU, Silicone Rubber, EPDM, PU. |
| Hub Material | Aluminum, Steel,SS, Sintered Bronze, Brass, Bearing, Many Plastics |
| Dimension | Diameter: 10mm-670mm |
| Length:50mm-8200mm | |
| Following drawing or as requested | |
| Color | Clear, light yellow, or per request |
| Hardness | Shore 15A~ 75D |
| Bearing Choices | Ball, Needle, Sintered Bronze, Plastic,SS, self-aligning roller bearing |
| Warranty | 12 -36months |
| Special Feature: | No bubbles, smooth surface,bright color |
| High precision, normally within 0.1mm | |
| Good depth of parallelism | |
| High wear resistance | |
| Excellent resistance against oil,acid-base,abrasion,corrosion and high temperature | |
| Good elasticity,no swelling,no cracking | |
| Work environment temperature:-50 °C- 93°C | |
| Applications of rubber roll | Bridle Rollers/Calender Rollers/Coating Rollers/Contact Rollers |
| Converting Rollers/Conveyor Rollers/Feeding Rollers/Hold down Rollers | |
| Idler Rollers/Laminating Rollers/Pinch Rollers | |
| Printing RollersScoring Rollers/ Snubber Rollers/ Squeegee Rollers | |
| For textile machinery/ Printing machinery/ Woodworking machinery | |
| Packaging machinery/ Plastic machinery/Leather machinery | |
| Printing and dyeing machinery/Conveyer machinery/Paper machinery | |
| TFP advantage | 15year experience on mainchinery part and compound plastic material; Only 100% pure raw materia; 13000 squaremeters workshop; 17 technician. |
SPECIFICATION:
Roller Diameter: 89, 102, 108, 114, 127, 133, 140, 152, 159, 165, 178, 194, 219mm
Roller Length: 100-2400mm.
Shaft Diameter: 20, 25, 30, 35, 40, 45, 50mm
Bearing type: 6204, 6205, 6305, 6206, 6306, 6307, 6308, 6309, 6310
Standard: DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc.
FEATURES:
1. Absorbs weight and shocks;
2. High loading capacity;
3. Highly-effective labyrinth seals protected from dust & water into the bearing;
4. Designed and manufactured for a long, trouble-free life;
5. Maintenance-free, high-quality sealed ball bearing.
