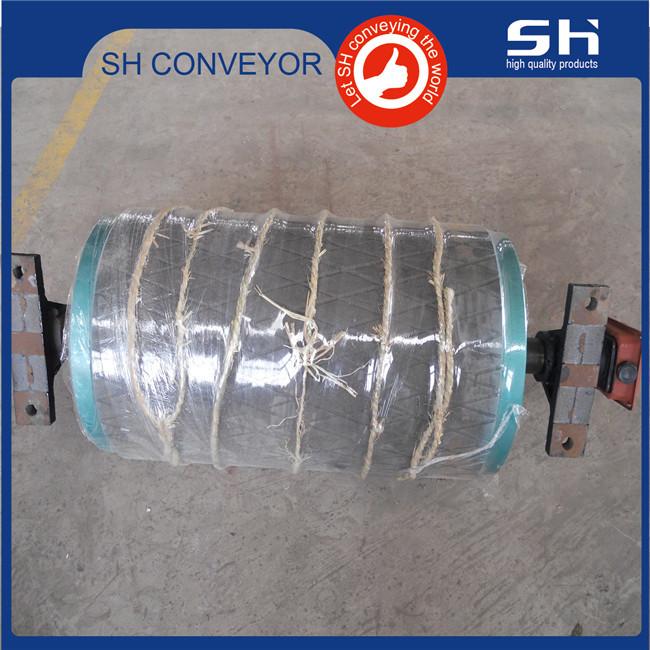

500mm Drive Head Drum Lagging Conveyor Pulley
Belt Conveyor Drive Head Drum Lagging Pulley For Conveyor
Our drive pulley is divided into steel smooth pulley and rubber lagging drive pulley.

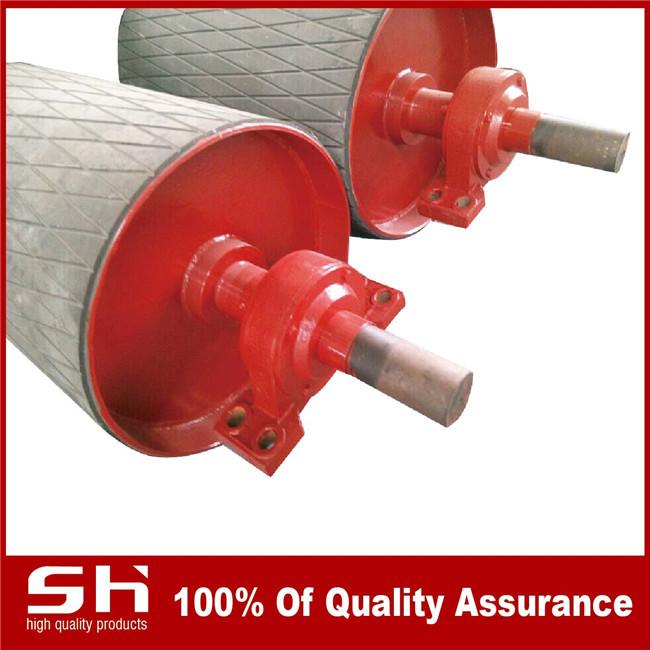

The steel smooth pulley is generally used on the small volume and no slope conveyor, but requires lower environment humidity, while the surface of the rubber lagging drive pulley has large friction coefficient, which can provide a greater driving force and increase the service life of the pulley and belt, suitable for the conveyor used under high humidity environment , long distance and large volume. Now the rubber lagging drive pulley is widely applied in drive pulley.
The rubber lagging drive pulley can be divided into hot casting rubber and cold wrapping rubber according to the procedure
conveyor head pulley is the main part of belt conveyor to transmit power.is widely used in metallurgy,mining,lifting,transportation,Cement,construction,chemical,building,materials,light industry,petroleum,printing,dyeing and textile etc.
Driving pulley (head pulley) Features
1, The driving pulley (head pulley) is welded by steel plate, and using rolling bearings.
2, The surface of driving pulley (head pulley) includes three type: smooth, plastic and cast plastic. Usually the smooth pulley can be used on condition that the power is not big, and the the ambient temperature is low. The plastic surface pulley should be used when it is easy to slip.
Product Paramenters
|
SPECIFICATIONS
|
|||
|
Product name
|
belt conveyor pulley drum
|
||
|
Type
|
Transmission drum, Redirection drum, Driving Electric drum
|
||
|
Length
|
200mm-1800mm
|
||
|
Materials
|
Carbon steel, Stainless steel, Rubber
|
||
|
Surface treatment
|
Smooth, Diamond grooved lagging, Herringbone lagging, Ceramic lagging
|
||
|
Welding
|
Submerged arc welding
|
||
|
Bearing
|
SKF, NTN and other brands at home and abroad
|
||
|
Structure
|
Tube,shaft,self-aligning bearing,bearing seat/house,hub, locking bushing,end disc
|
||
Advantage of pulley :
1. Dust-proof & Water-proof
The contact-sealing is adopted, which enjoys more superior dustproof and waterproof
2. Low Vibration and Noise
Static balance test to ensure G40 accuracy level.
3. Strong Force of Friction
The material for shaft is forged shaft of 40Cr instead of #45 round steel,which improves mechanical property
4. Easy Installation & Simple Maintenance
The bearing block and taper-lock are ground, which ensure the installation precision
5. Min 50000 hours service life
Stress annealing will be done after welding with CO2 gas shielded arc-welding machine, which can ensure the quality of welding line
