Pakistan UK Perkins Generator Set 1106 Series 150kVA 180kVA 200kVA
Perkins Generator Pakistan, UK Perkins 1106 Series , 150kVA , 180kVA And 200kVA
| Generator Set Specification | ||
| Model | A-P165 | |
| Max. Power | kVA | 165 |
| kW | 132 | |
| Rate Power | kVA | 150 |
| kW | 120 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2450 X 800 X 1400 |
| Weight For Open-type Genset | kg | 1590 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 2090 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | One of 120A Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Perkins Engines Company Limited | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TAG2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 153.6 |
| Displacement | L | 7.0 |
| Compression Ratio | 16.0 : 1 | |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.5 |
| Intake Air Flow | L/S | N.A. |
| Fuel Consumption at 100% Load | L/H | 33.4 |
Hosem Power Perkins Generator Set, Powered by Perkins 1106 series engine (1106A-70TAG2, 1106A-70TAG3, 1106A-70TAG3) Power range from 150kVA, 180kVA and 200kVA.

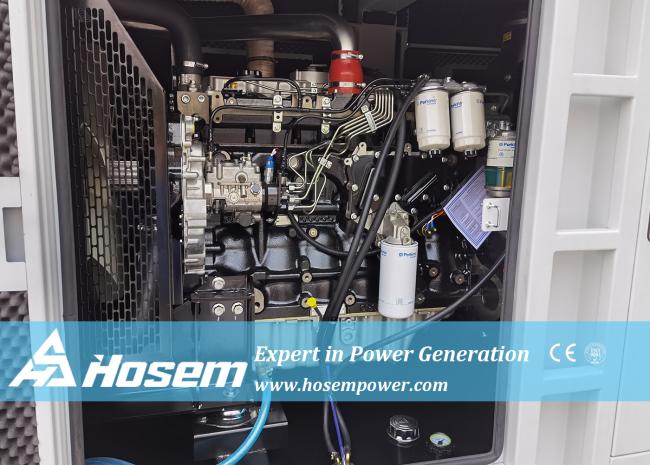

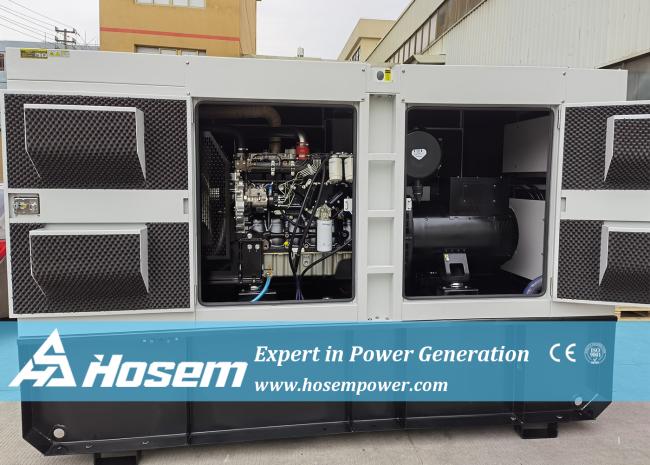

- Canopied type three-phase generator powered by a Perkins diesel engine and Leroy Somer alternator.
- Installed on a solid welded steel base frame with fork slots for easy maneuverability. Wide access door makes usage and maintenance very convenient.
- Weather-protective and sound-attenuated enclosure suitable for outdoor use. Bunded fuel tank that protects the environment for long hours of operation.
Features of 150kVA Perkins Generator Set
•Excitation system: self-excited (AREP and PMG are optional)
• ATS (automatic transfer switch) receptacle
• Lockable battery isolator switch
• Stainless galvanized zinc plates with strong
corrosion resistance(Optional)
• Vibration isolators between the engine/alternator
and base frame
• Integrated wiring design
• Base fuel tank for at least 8 hours running
• Equipped with an industrial muffler
• Engine oil pump
• 50℃ radiator
• Top lifting and steel base frame with forklift holes
• Drainage for fuel tank
• Complete protection functions and safety labels
• IP54 (soundproof sets), IP56 (control system)
• Water jacket preheater, oil heater and double air
cleaner, etc. are available.
