4DX23-78D Engine Fawde Diesel Generator 40kW 45kW 50kW
Chinese Diesel Generator, FAW Diesel Generator , 40kW, 45kW, 50kW , 4DX23-78D
Specifiation:
| Generator Set Specification | ||
| Model | A-XC69 | |
| Max. Power | kVA | 69.0 |
| kW | 55.0 | |
| Rate Power | kVA | 63.0 |
| kW | 50.0 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 90.2 |
| Dimension For Open-type Genset | mm | 2200 X 920 X 1210 |
| Weight For Open-type Genset | kg | 1050 |
| Dimension For Soundproof Genset | mm | 2300 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1420 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Litres | 125 |
| Battery | Two of 80A Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Faw Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works | |
| Engine Brand | Fawde | |
| Engine Model | 4DX23-78D | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 63 |
| Displacement | L | 4.750 |
| Starting Voltage | V | 24 |
| Bore | mm | 110 |
| Stroke | mm | 125 |
| Lubrication Oil Capacity | L | 16 |
| Compression Ratio | 17.5 : 1 | |
| Intake Air Flow | M3/Min | 12.3 |
| Fuel Consumption at 100% Load | L/H | 14.8 |

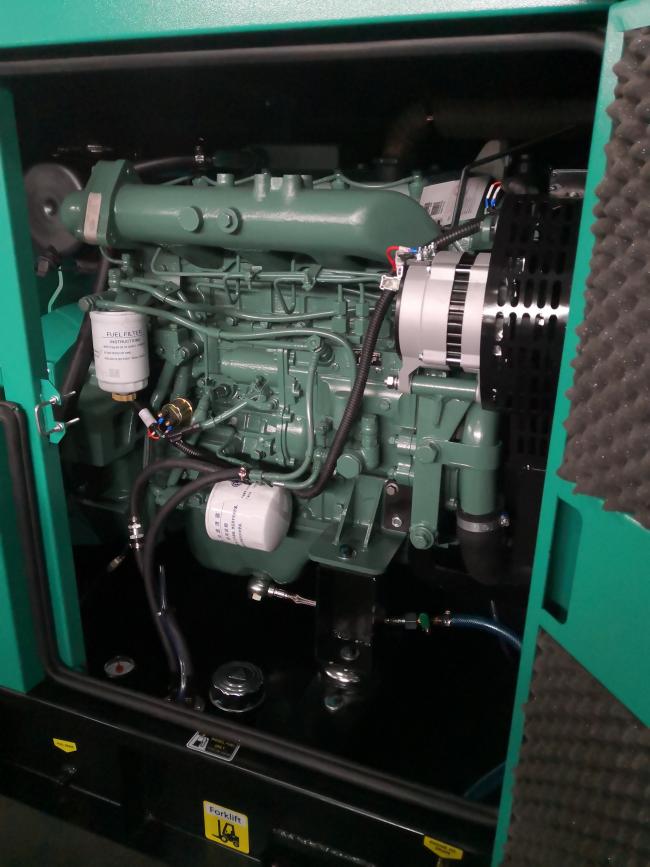

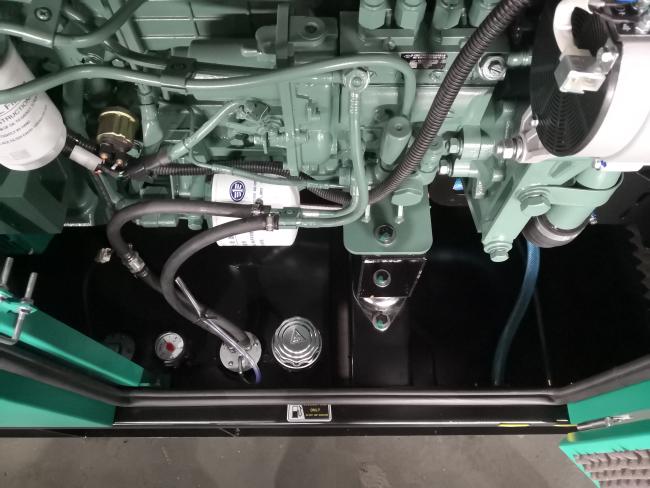

Hosem FAW series silent generator set, equipped with original Chinese famous diesel engine brand, model 4DX23-78D, rated power 48kW/ 60kVA. FAW generators have many advantages, such as low noise levels, small vibration, and low fuel consumption.
Other advantages of 60kVA FAW Diesel Generator
1. Compact structure, small size, light weight, easy to transport
2. Strong power, low fuel consumption, small vibration, low emissions, in line with the national environmental protection requirements
3. Excellent durability, long operation life, overhaul cycle more than 10000 hours;
4. Simple operation, easy access to spare parts, low maintenance cost,
5. The product has high reliability and the maximum ambient temperature can reach 60 ℃
6. Using GAC electronic governor, built-in controller and actuator integration, 1500 rpm and 1800 rpm rated speed adjustable
7. Global service network, convenient service.
Standard Features:
Excitation system: self-excited (AREP and PMG are optional)
• ATS (automatic transfer switch) receptacle (optional)
• Lockable battery isolator switch
• Stainless galvanized zinc plates with strong
corrosion resistance (Optinal)
• Vibration isolators between the engine/alternator
and base frame
• Integrated wiring design
• Base fuel tank for at least 8 hours running
• Equipped with an industrial muffler
• Engine oil pump
• 50℃ radiator
• Top lifting and steel base frame with forklift holes
• Drainage for fuel tank
• Complete protection functions and safety labels
• IP54 (soundproof sets), IP56 (control system)
• Water jacket preheater, oil heater and double air
cleaner, etc. are available.
Contact Us:
FQA
Question:
What's your delivery time?
Answer:
Our delivery time is 35days after receiving your deposit
Question:
What's your warranty?
Answer:
We provide 1 year or 1000 hours warranty to our industrial and marine generator
Question:
Do you provide OEM or ODM service?
Answer:
Yes, in Hosem Power, we have an R&D department which professional in resolving any tailored needs of our Customers, OEM and ODM are available.
