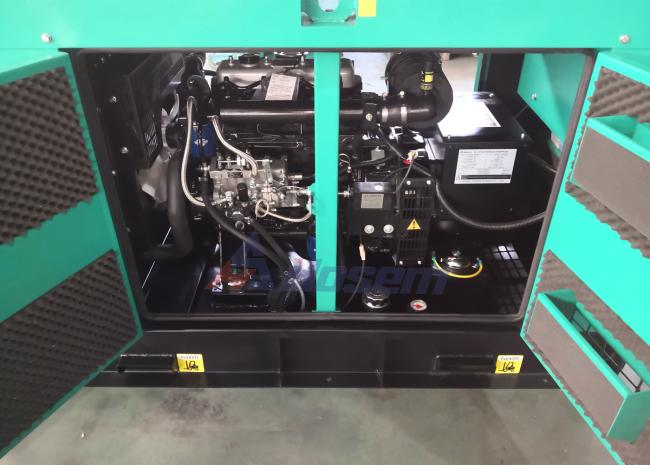

Water Cooled 13kVA 10kW Silent Quanchai Diesel Generator Set High Performance
Power Supply Water Cooled 13kVA 10kW Silent Diesel Generator Set Powered by Quanchai Engine
| Generator Set Specification | ||
| Model | A-QC14 | |
| Max. Power | kVA | 14 |
| kW | 11 | |
| Rate Power | kVA | 13 |
| kW | 10 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 18.0 |
| Dimension For Open-type Genset | mm | 1320 X 720 X 1050 |
| Weight For Open-type Genset | kg | 495 |
| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 |
| Weight For Soundproof Generator | kg | 785 |
| Noise Level at 7 Meters | dBA | 70 |
| Fuel Tank Capacity | Liters | 40 |
| Battery | One of 80A Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Anhui Quanchai Engine Co., Ltd. | |
| Engine Brand | Quanchai | |
| Engine Model | QC480D | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 14 |
| Displacement | L | 1.800 |
| Starting Voltage | V | 12 |
| Bore | mm | 80 |
| Stroke | mm | 90 |
| Lubrication Oil Capacity | L | 6 |
| Compression Ratio | 18 : 1 | |
| Intake Air Flow | M3/Min | 1.65 |
| Fuel Consumption at 100% Load | L | 4.2 |
| Alternator Specification | ||
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
| Alternator Model | ASF164C | |
| Alternator Brand | Hosem | |
| Rate Output | kVA | 12 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Voltage Regulation | SX460 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤40℃ | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
| Control Panel Specification | ||
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 80 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with AMF Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Product Description
Δ Genset Features
1. Brand new water-cooled diesel engine with 50 ºC tropical radiator.
2. Brand new brushless alternators.
3. Deepsea, Smartgen, or ComAp digital controller.
4. Maintenance-free starter battery with battery cable, battery terminal caps, and battery isolator switch.
5. Oil, coolant, fuel, and water drain on the base frame. Let the generator set clean more easily.
6. 0%, 25%, 50%, 75%,100%, and 110% loading test by load bank for each generator unit before shipping standard.
Δ Standard Configuration
1. Cooling system with large-size radiator and expansion tank
2. Heavy-duty chassis
3. Built-in insulation and anti-vibration block
4. Free-maintenance battery
6. Battery charger
7. Cable and bracket for battery
8. Battery isolation switch
9. Main circuit breaker
10. Automatic start control system
11. Fuel Water separator
12. Fuel level sensor
13. Oil sump pump
14. Full load test
15. Comprehensive security protection
16. Emergency stop button
Δ FAQ
Q1: Where is your Loading Port?
A:FUZHOU MAWEI PORT,CHINA.
Q2: What are your payment terms?
A:30% T/T With Order, 70% balance paid by T/T before shipment
Q3: What is your company's available production capacity?
A:100 Sets per month.
Q4: How is your packaging?
A: Stretching film as standard, plywood crate is optional.
