Vman D22 Diesel Engine 700kVA Industrial Generator Set

Price Negotiable

Price: USD27000.0 - USD33000.0 / Unit

MOQ: 1 Set

Delivery Time: 30 Days

Brand: Hosem

Product Description

Industrial Generator Set 700kVA Powered by Vman Diesel Engine Model D22

Feature of Vman Diesel Generator:

With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling,Hosem Power diesel generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc;
Supply the Vman diesel generator output from 263kVA to 1025kVA with 50Hz or 60Hz;
The standard couple with Hosem brand brushless alternator, have Stamford, Mecc Alte, Leroy Somer and Marathon alternator for optional.

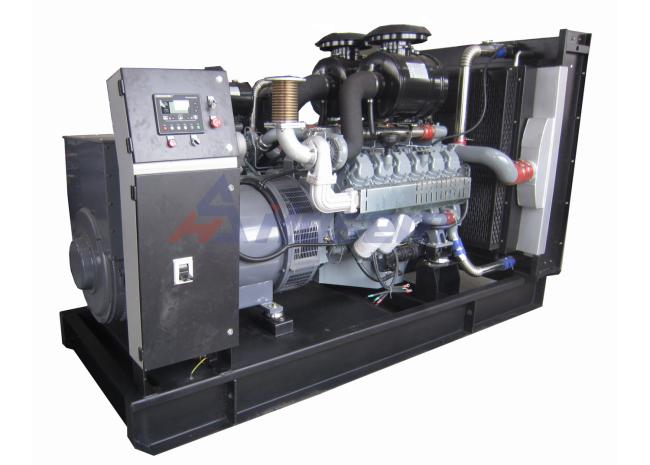

Complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame with base frame fuel tank;
Anti-vibration pads are fixes between the engine / alternator feet and base frame;

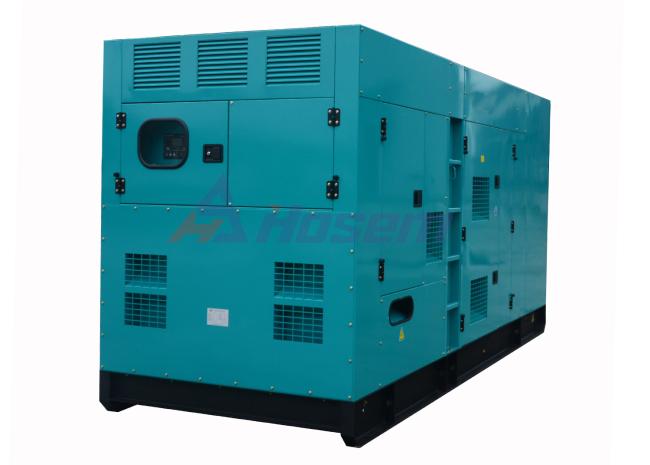

Open type, soundproof type, super silent type or trailer type diesel generator for optional;
All the products under CE, ISO9001-2008, SONCAP, SASO and SGS certified;
Container type design soundproof canopy is no problem to supply for 800kW above genset;
Starting system with maintenance-free battery;
Automatic start / stop system with Deepsea, ComAp or Smartgen brand controller;
With 100% fire-resistant sound attenuating sponge for soundproof canopy;
10% of rate output of overload for 1hours in every 12hours

Specification of 700kVA Industrial Generator Set:

Model		A-VM770
Max. Power	kVA	770
Max. Power	kW	616
Rate Power	kVA	700
Rate Power	kW	560
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	1010.4
Fuel Tank Capacity	L	700
Dimension For Open-type Genset	mm	3350 X 1500 X 1900
Weight For Open-type Genset	kg	3500
Dimension For Soundproof Genset	mm	4450 X 1650 X 2350
Weight For Soundproof Generator	kg	4750
Noise Level for Soundproof Generator at 7M	dBA	80
Battery		Four of 150A Free Maintenance Battery

Specification of Vman Diesel Engine D22:

Engine Manufacturer		Shanghai Youngfor Power Co., Ltd
Engine Brand		Vman
Engine Model		D22
No. of Cylinder		12 Cylinder V type
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	700
Displacement	L	21.9
Compression Ratio		14.6 : 1
Starting Voltage	V	24
Bore	mm	128
Stroke	mm	142
Lubrication Oil Capacity	L	41- 57
Intake Air Flow	M³/Min	49.3 - 86.1
Fuel Consumption at 100% Load	L/H	151.8

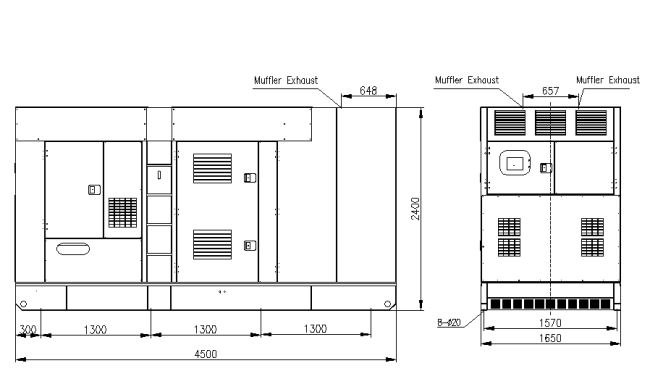

Design of 700kVA Vman Diesel Generator with Soundproof Canopy

Specification of Hosem Brushless Alternator:

Alternator Manufacturer		Fuzhou Hosem Power Co., Ltd.
Alternator Model		ASF354G
Alternator Brand		Hosem
Rate Output	kVA	700
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		1500
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		MX321
Protection Grade		IP23
Alternator for optional	Stamford, Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Specification of Automatic Control Panel:

Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity (A)	1250
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
