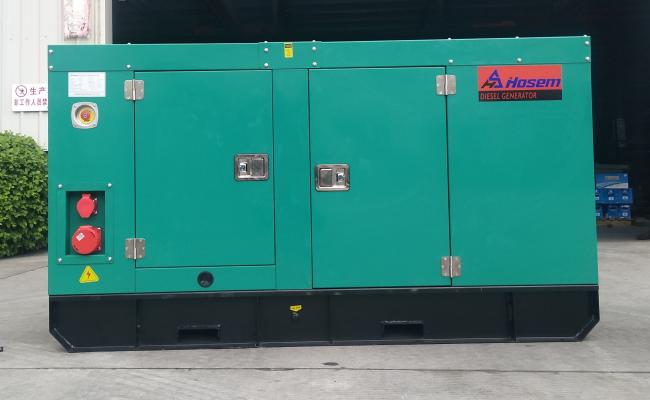

Isuzu Diesel 25kVA Industrial Generator Set 68dBA 20kW
Isuzu Diesel Generator Set , 25kVA Isuzu Generator, 68dBA Super Silent Generator, 20kW Generator
Hosem Power Isuzu series Genset fit-up with Jiangxi Isuzu which was authorities by Japanese Isuzu. Genuine original Isuzu.
Specification:
| Model | A-I28H | |
| Standby Power | kVA | 28 |
| kW | 22 | |
| Prime Power | kVA | 25 |
| kW | 20 | |
| Frequency | Hz | 60 |
| Output Voltage | V | 240 |
| Oil Consumption | L/H | 0.04 |
| Dimension For Open-type | mm | 1370 X 680 X 1600 |
| Weight For Open-type | kg | 570 |
| Dimension For Soundproof | mm | 2300 X 900 X 1250 |
| Weight For Soundprof | kg | 850 |
| Engine Model | JE493DB-03 | |
| No.of Cylinder | 4 Cylinder in line | |
| Bore | mm | 93 |
| Stroke | mm | 102 |
| Displacement | L | 2 .771 |
| Cooling Fan Air Flow | m3/min | 118 |
| Compress Air Flow | m3/min | 18.2 |
| Exhaust Gas Flow | m3/min | 7.97 |
| Exhaust Gas Temperature | ℃ | 550 |
| Lubrication Oil Capacity | L | 5.6 |
| Cooling Water Capacity | L | 4.5 |
| Starting Voltage | V | 12 |
| Engine Max.Output Power | kW | 29 |
| Alternator Model | PI 144D | |
| Alternator Brand | Stamford | |
| Rate Output | kVA | 25 |
| Frequency | Hz | 60 |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Protection Grade | IP23 | |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice. | |
| Control Panel Model | AF500 | |
| Controller | Deepsea Brand Model DSE7320 | |
Isuzu diesel engine which features reliable starting performance, environmental protection, low vibration, and energy-saving, etc. Benefiting from the engine's characteristics, the Isuzu diesel generator set features stable and reliable work at running.
Features of Hosem Power ISUZU Series Diesel Generator
- Output range: from 20kVA up to 48kVA
- Engine models: JE493DB-03, JE493DB-01, JE493ZDB-03, JE493ZLDB-01.
- Alternator: Stamford, Marathon, Leroy Somer, Mecc Alte and Chinese brand with brushless and "H" Class Insulation.
- 8hrs operation base tank
- Key start (Power Switch) / auto start
- Open type / sound-proof / weather-proof canopy / mobile type are optional
- 50Hz / 60Hz, 0.8 PF three-phase and four wires
Frequency:
- Frequency at stable state: <0.5%
- Frequency deviation at instantaneous state: ≤+10%
- Frequency return time: ≤3s
Voltage:
- Voltage deviation at stable state: ≤±1%
- Voltage deviation at instantaneous state: ≤+20%
- Voltage return time: ≤4s
- Voltage modulation: ≤0.3%
