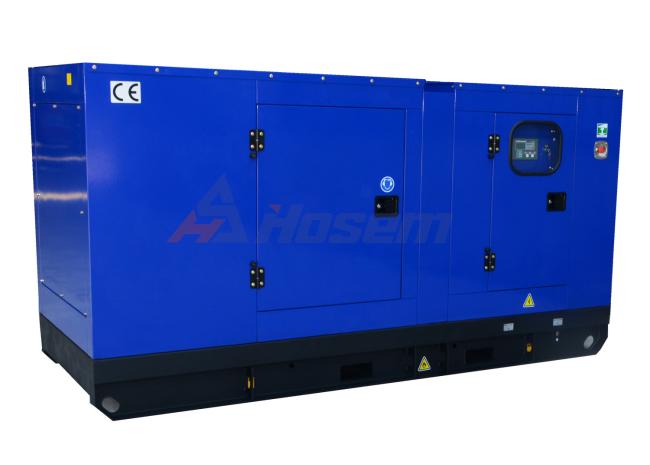

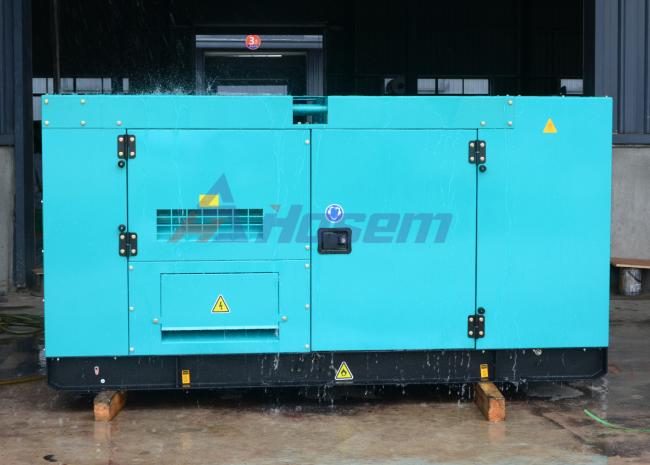

ISO14001 50kw Soundproof Fawde Diesel Generator
Price:
USD5000 to USD6500
MOQ:
1 Set
Delivery Time:
20 Days
Brand:
Hosem
Product Description
New Diesel Generator for Sale , 50kW China Diesel Generator For Sale
Supply Range of 50kW New Diesel Generator:
| Standard Configuration of 50kW China Diesel Generator | Optional Configuration for 50kW China Diesel Generator |
| 1. Fawde Diesel Engine 4DX23-78D | 1. Soundproof Canopy |
| 2. Hosem Brushless Alternator ASF224E | 2. Heavy-duty air filter |
| 3. ComAp IL-AMF9 Automatic Controller | 3. Engine Oil Heater |
| 4. Cooling system with large size radiator and expansion tank | 4. Engine coolant heater |
| 5. Heavy- duty chassis | 5. Coolant level sensor and alarm |
| 6. Built-in insulation and anti-vibration dampers | 6. Alternator Anti-condensation heater |
| 7. Free-maintenance battery | 7. PMG alternator |
| 8. Charge alternator for diesel engine | 8. Power sockets panel |
| 9. A.C. 220V battery charger | 9. Daily fuel fank |
| 10. Cable and bracket for battery | 10. External fuel connections |
| 11. Battery isolation switch | 11. Automatic fuel refilling device |
| 12. Circuit breaker | 12. Residential type silencer |
| 13. Fuel & Water separator | 13. Skid with forklift slots |
| 14. Oil sump pump | 14. Parallel Panel |
| 15. Full safety operation protection | 15. ATS (Automatic Transfer Switch) |
| 16. Emergency stop button | 16. Mobile trailer chassis |
| 17. Automatic start control system | 17. 4 Pole circuit breaker |
Technical Data of 50kW New Diesel Generator:
| Model | A-XC69 | |
| Max. Power | kVA | 69.0 |
| kW | 55.0 | |
| Rate Power | kVA | 63.0 |
| kW | 50.0 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 90.2 |
| Dimension For Open-type Genset | mm | 2200 X 920 X 1210 |
| Weight For Open-type Genset | kg | 1050 |
| Dimension For Soundproof Genset | mm | 2300 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1420 |
| Noise Level at 7 Meters | dBA | 70 |
| Fuel Tank Capacity | Litres | 125 |
| Battery | Two of 80A Free Maintenance Battery | |
Technical Data of Fawde Diesel Engine:
| Engine Manufacturer | Faw Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works | |
| Engine Brand | Fawde | |
| Engine Model | 4DX23-78D | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 63 |
| Displacement | L | 4.750 |
| Starting Voltage | V | 24 |
| Bore | mm | 110 |
| Stroke | mm | 125 |
| Lubrication Oil Capacity | L | 16 |
| Compression Ratio | 17.5 : 1 | |
| Intake Air Flow | M3/Min | 12.3 |
| Fuel Consumption at 100% Load | L/H | 14.8 |

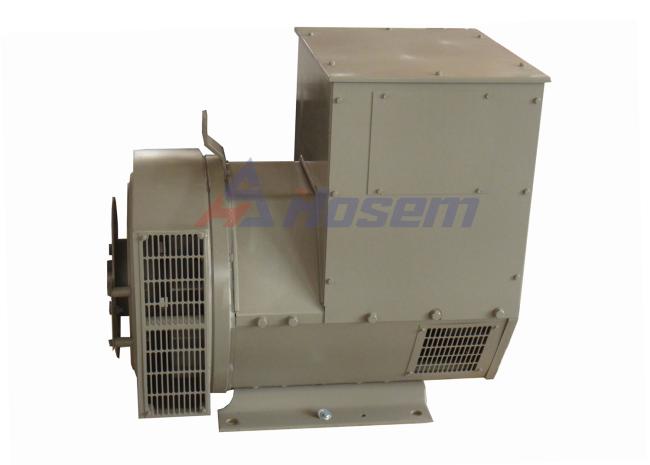

Technical Data of Hosem Brushless Alternator:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
| Alternator Model | ASF224E | |
| Alternator Brand | Hosem | |
| Rate Output | kVA | 63 |
| Frequency | Hz | 50Hz |
| Current | A | 90.2 |
| Insulation | Class H | |
| Voltage Regulation | SX460 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤1000 m | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
Technical Data of Automatic Control Panel:
| Controller Brand | ComAp | |
| Controller Model | IL-AMF9 | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 125 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with AMF Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
