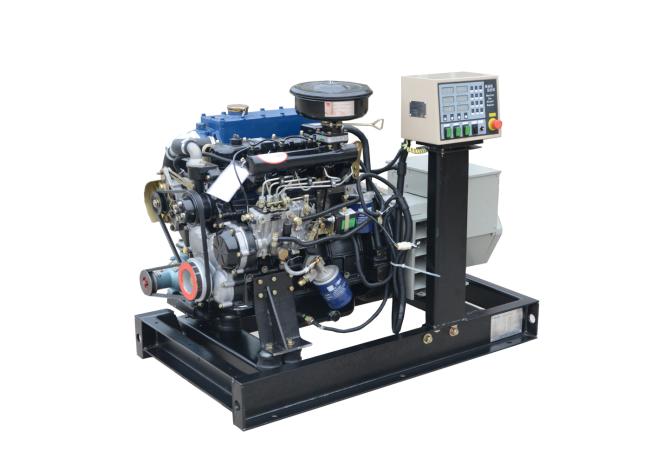

Compact Weichai 20kW Marine Generator Set For Fishing Boat
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
30 days
Brand:
Hosem Power
Product Description
China Marine Generator Set , Weichai 20kW Marine Generator , Heat Exchanger , Wet Exchaust
Specification
| Engine Model | WP2.3CD25E200 |
| Number of Cylinders | 4 cylinders in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged and after-cooled |
| Bore×Stroke | 105 x 130 mm |
| Displacement | 2.3L |
| Prime Power / speed | 25KW / 1500rpm |
| Speed Governor | Mechanical |
| Cooling System | By heat ex-changer |
| Fuel Consumption at 100% Load | 197 g/kw.h |
| Starter Motor | DC24V |
| Alternator Model | ASF184FM |
| Prime power | 20KW |
| Frequency/speed | 50HZ / 1500rpm / 400 V |
| Exciter type | Brush-less, Self-excited |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Wires | Marine protection painting |
Features
Widely used in inland and coastal waters, offshore market carriers, fishing boats
Field official boats, ships and other projects;
Has a good technical performance indicators;
Compact, high power per liter;
DC24V DC insulation systems;
Non-stop to replace the fuel filter;
