Rapier loom is new type modern non-shuttle weaving loom in which the filling yarn is carried through the shed of warp yarns to the other side of the loom by finger-like carriers called rapiers.
A stationary package of yarn is used to supply the weft yarns in the rapier machine. One end of a rapier, a rod or steel tape, carries the weft yarn. The other end of the rapier is connected to the control system. The rapier moves across the width of the fabric, carrying the weft yarn across through the shed to the opposite side. The rapier is then retracted, leaving the new pick in place.
In some versions of the loom, two rapiers are used, each half the width of the fabric in size. One rapier carries the yarn to the center of the shed, where the opposing rapier picks up the yarn and carries it the remainder of the way across the shed. The double rapier is used more frequently than the single rapier due to its increased pick insertion speed and ability to weave wider widths of fabric.

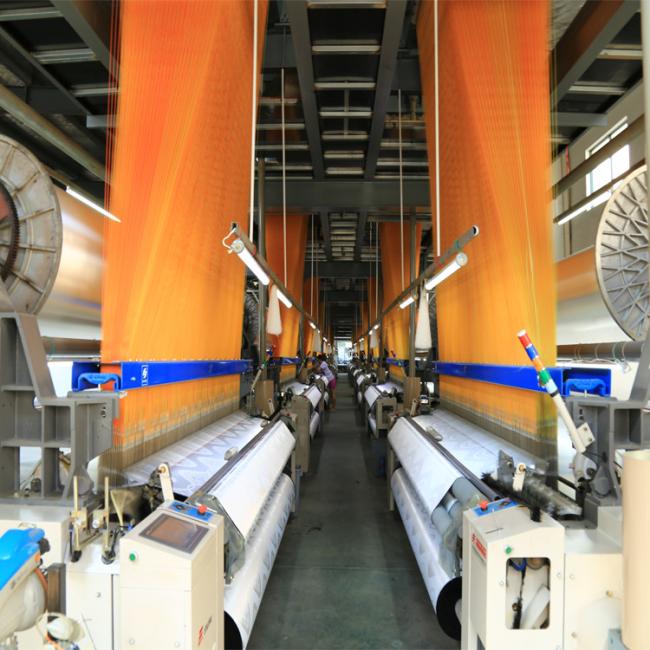

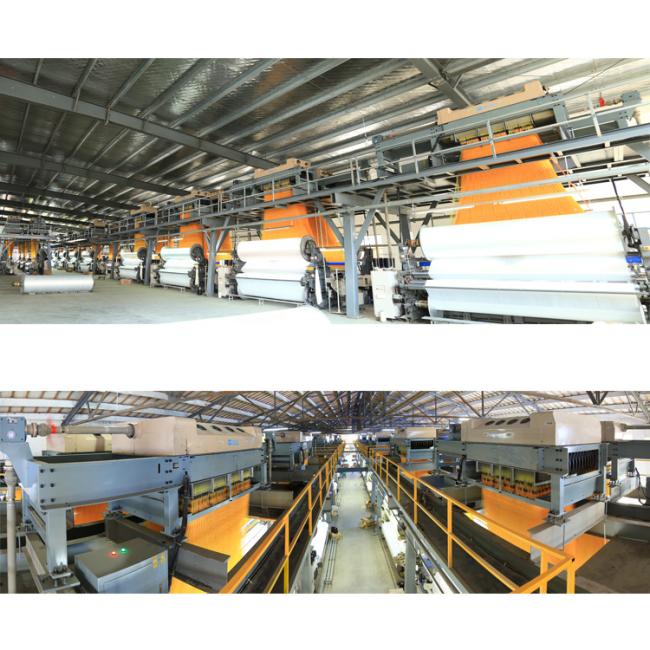

Products Picture
