787mm Small Toilet Roll Tissue Paper Production Line 120m/min
Price:
$29900-30000 1set
MOQ:
1set
Delivery Time:
2-6months
Brand:
HAIYANG
Product Description
Products Description
Technical for Toilet paper making machine
| Raw material | Waste paper; wood pulp board |
| Output paper style | Toilet paper; tissue paper |
| Paper weight | 15-60g/m2 |
| Paper width | 787mm |
| Width of cylinder mould | According to actual |
| Capacity | 1T/D |
| Design speed | 120m/min |
| Work speed | 70-110m/min |
| Design Standards | CNS export equipment |
| Machine specifications | Upside down slurry form |

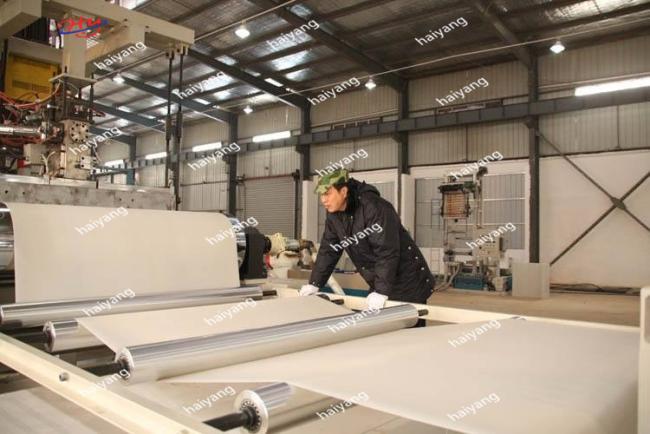

Detail photos of toilet tissue paper making machine from wood pulp
Toilet Paper Making Machine is the simplest paper machine of all paper machine types - three single machine. It's mainly made up of single-dryer, single-cylinder and single-net felts. The schematic shows the three structures of the machine.
| No. | Name of pulp equipment | Function |
| 1 | Head box | Pulverize the raw material, such as wooden pulp,waste paper.etc |
| 2 | Pulp pump | work with desander to convey slurry |
| 3 | Vibrating screen | Remove plastic and iron nail out of pulp |
| 4 | Inclined screen | Remove more subtle impurities |
| 5 | High consistency desander | Remove the sand |
| 6 | Thruster | Stir the paper pulp,keep pulp reach a stable condition |
| 7 | Fiber separator | Remove waste paper impurities.Get best pulp |
| 8 | Pressure screen | Separate the impurity |
Processing for Toilet paper making machine
Raw material ⇒ Pulp ⇒ Screening purification ⇒ Pulp tank ⇒ Concentration ⇒ Pulp tank ⇒ Grinding ⇒ Slurry tank ⇒ Pulp box ⇒ Paper machine ⇒ Jumbo roll
Packing and delivery
(1) Packaging:
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery:
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery:
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;
Tips for Toilet paper making machine
- How many tons per day you want to produce about mini toilet paper making machine?
- How many width you want to finished paper about mini toilet paper making machine?
- Which kind of boiler you want to use about mini toilet paper making machine? (The machine need to use boiler,the boiler function is produce hot steam to drying paper,the boiler have 3kinds: coal boiler and gas boiler and diesel boiler, you choose one)
