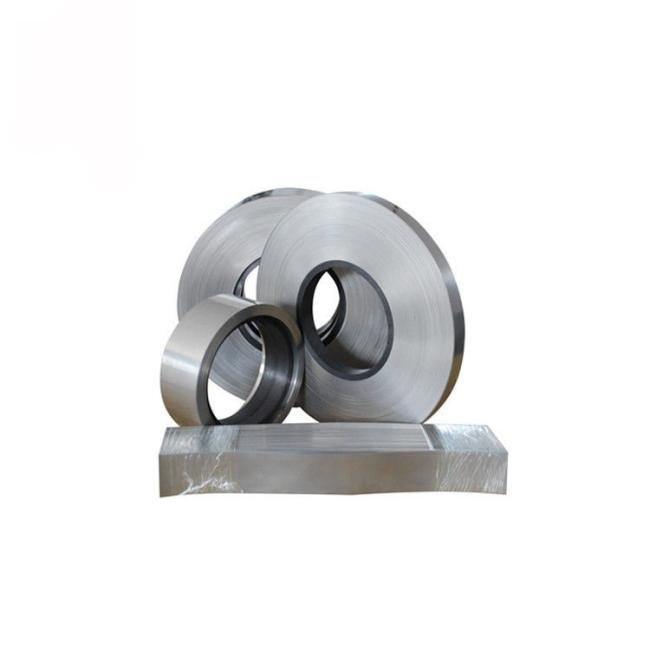

400mm Width Non Weldable High Purity Nickel Plated Copper Foil
1. Description
Nickel has strong passivation ability due to its high stability in the air. It can form a very thin passivation film in the air which can resist atmospheric alkali and some acid corrosion. It makes nickel plated product with good chemical stability during working or under alkaline environment. Nickel plated product is not easy to change color and can be oxidized when the temperature is above 600℃.Nickel plated layer has strong adhesion and is not easy to fall off. The product’ surface with high hardness after plating nickel which can improve wear resistance and resistance to acid and alkali corrosion resistance, wear-resisting, anti-corrosion, rust excellent performance products.
Double sides Nickel plated copper foil mean the two sides have plated with Nickel.
2. Base Material Width Range:
≤600mm (≤23.62inches)
3. Base Material:
The base material alloy number is C11000(ASTM) which Cu content is more than 99.96%. It is high-precision rolled copper foil
High-precision Rolled Copper Foil (JIS:C1100/ASTM:C11000) Cu content more than 99.96%
4. Base Material Thickness Range:
We can produce different width Nickel plated copper foil. The range is 0.012mm to 0.15mm (0.00047inches~0.0059inches). Customer has various choices.
5. Base Material Temper:
According to customer requirements
6. Application:
Electrical appliances, electronics, batteries, communications, hardware and other industries;
7. Performance Parameters:
| Items | Non-weldable Nickel Plating |
| Width Range | less than 600mm (≤23.62inches) |
| Thickness Range | 0.012 to 0.15mm (0.00047inches~0.0059inches) |
| Nickel Layer Thickness | ≥0.2µm |
| Nickel Content of Nickel Layer | 100% Pure Nickel |
| Surface Resistance of Nickel Layer (Ω) | 0.05~0.07 |
| Adhesion | 5B |
| Tensile Strength | Base Material Performance Attenuation after Plating ≤10% |
| Elongation | Base Material Performance Attenuation after Plating ≤6% |
