Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer
Aluminum Oil Semi Tanker Trailer Description:
Advantages of aluminium oil semi tanker trailer:
1. Lightweight trailer body, more economical and practical
Aluminium oil tanker is lighter than carbon steel tanker, which reduces fuel consumption and tire wear during transportation, thus reducing daily operating and maintenance costs.
2. Strong corrosion resistance and long service life
Aluminum has good compatibility with most media and food, wide transportation range, low maintenance cost, not easy to rust, easy to clean.
3. Good ductility to improve safety and eliminate hidden dangers
The tank body is made of aluminum with good elongation and high strength.It's not easy to explode.
4. Recyclability and high recovery rate
Aluminum has a very high recovery value, which can effectively save the operation cost of enterprises.
Aluminum Oil Semi Tanker Trailer Drawing:
Main Configeration:
| Tank Body | |
| Shape | Cylindrical |
| Dimension | 13000m*2500mm*3850mm |
| Tare weight | 7700Kg |
| Total Volume(m3) | 50 m³ |
| Tanker Body Material | 6mm aluminium alloy 5083 |
| End Plate | 6mm aluminium alloy 5083 |
| Manhole Cover |
stainless steel manhole ,diameter 500mm,two pieces (jia long brand) |
| Bottom Valve |
Aluminum API Pneumatic Bottom Valve, one pieces (jia long brand) |
| Discharging Valve | aluminium alloy ball valve 4 inch ,2 pieces |
| Compartments | 1 pieces |
| Discharging Pipe | 4”Rubber tube ,two pieces , six meters length |
| Cat Walk | As requirement |
| Chassis | |
| Main Beams | High strength plate T700 |
| Axle | 3 axles FUWA |
| Landing Gear | JOST D200T |
| King Pin | 3.5 inch bolts type kin pin |
| Suspension | Mechanical suspension (America system ) |
| Leaf Spring | 90mm(width)/13mm(thickness)/10pieces |
| Pneumatic Braking System |
Vabco emergency valve,four double and two single chamber, one pieces air tanker . |

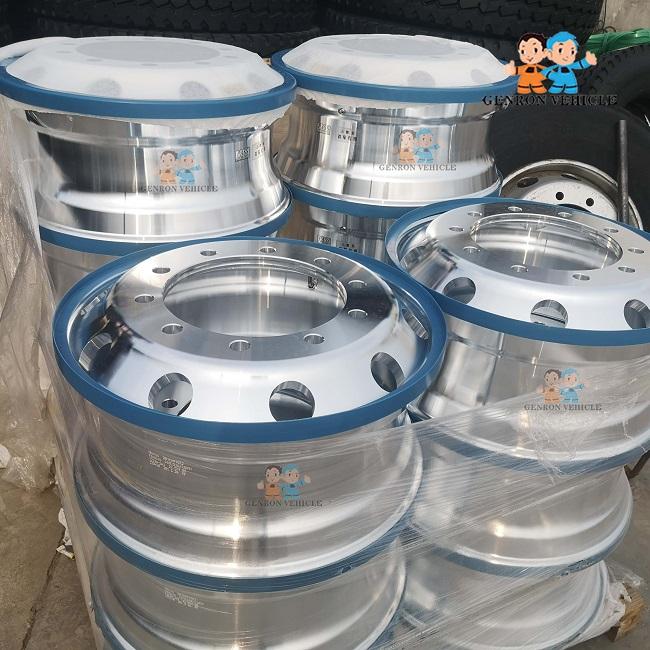

| Rim | 9.00-22.5 13 pieces |
| Tire | 12.00R22.5 Triangle Brand |
| ABS | With |
| Fire extinguisher | Two pieces 4 KG , |
| Painting | Main Beam ,suspension 2 coats of final paint ;tanker body no painting . |
| Accessories | One standard tool box ,steel |
Aluminum Oil Semi Tanker Trailer Detail:

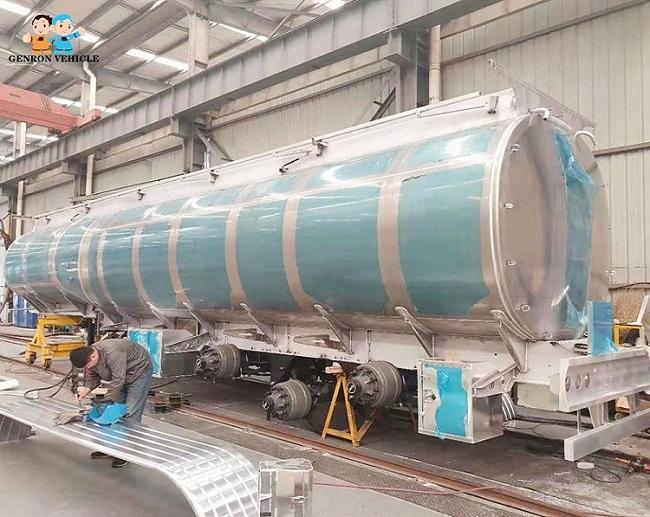

Aluminum Oil Semi Tanker Trailer Factory Show:
