Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol

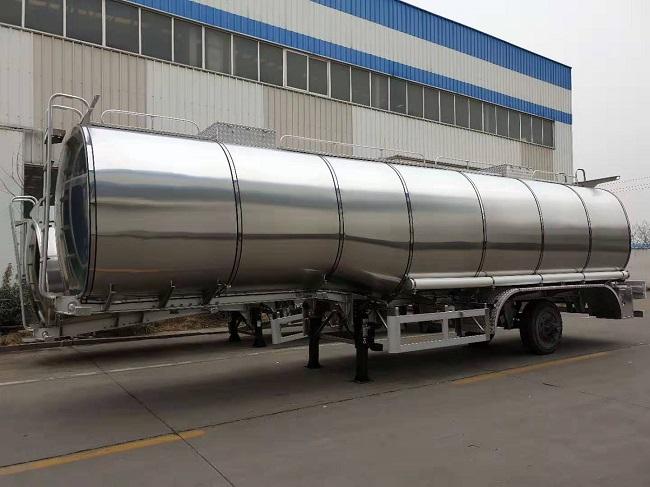

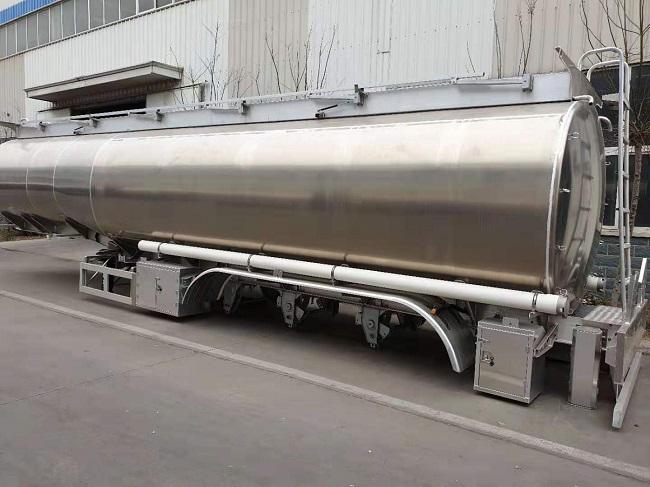

Aluminum Oil Semi Tanker Trailer Description:
Advantages of 3 Axles Oil Tanker Semi Trailer:
1. The oil semi-trailer is mainly used for the transportation of large-scale oil and liquid asphalt, with a tonnage of about 40-60 cubic meters.
2. Q235 carbon steel plate, stainless steel or aluminum material are mostly used for tank body material of oil semi-trailer.
3. The pump oil system can be installed, and the force is taken from the gearbox side through the power take-off device, which can be self-priming and self-discharging; it has two oil extraction pipes, and is equipped with quick assembly joint, with a suction distance of 6m. Two fire extinguishers and special tools.

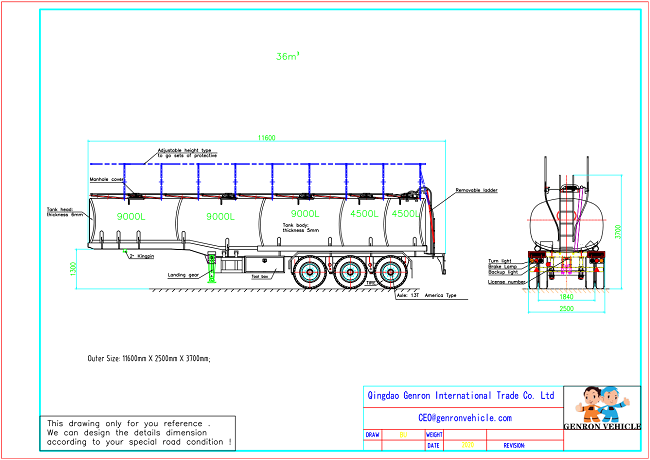

Aluminum Oil Semi Tanker Trailer Drawing:
Main Configeration:
| Tank Body | |
| Shape | Cylindrical |
| Dimension | 11000m*2500mm*3880mm |
| Tare weight | About 7000Kg |
| Total Volume(m3) | 46m³ |
| Tanker Body Material | 6mm aluminium alloy 5083 |
| End Plate | 6mm aluminium alloy 5083 |
| Manhole Cover | stainless steel manhole ,diameter500mm,two pieces (jia long brand),with two Oil and gas recovery system |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve, two pieces(jia long brand) |
| Discharging Valve | aluminium alloy ball valve 4 inch ,2 pieces |
| Compartments | 2 compartments |
| Discharging Pipe | 4”Rubber tube ,two pieces , six meters length |
| Cat Walk | As requirement |
| Chassis | |
| Main Beams | aluminium alloy 5083 |
| Axle | 3 axles BPW |
| Landing Gear | JOST D200T |
| King Pin | 2.00inch bolts type kin pin |
| Suspension | Air suspension (America system ) front lifting system BPW brand |
| Leaf Spring | Without |
| Pneumatic Braking System | Vabco emergency valve,four double and two single chamber, one pieces air tanker . |
| Rim | 13.00-22.5 7 pieces |
| Tire | 425/60R22.5 Chaoyang Brand , 7 pieces |
| ABS | With |
| Fire extinguisher | Two pieces 4 KG , |
| Spare Tire Carrier | 2 pieces aluminum alloy 5083 |
| Side,rear safty guard | All aluminum alloy |
| Painting | Without Painting |
| Accessories | One standard tool box,aluminium alloy 5083 |

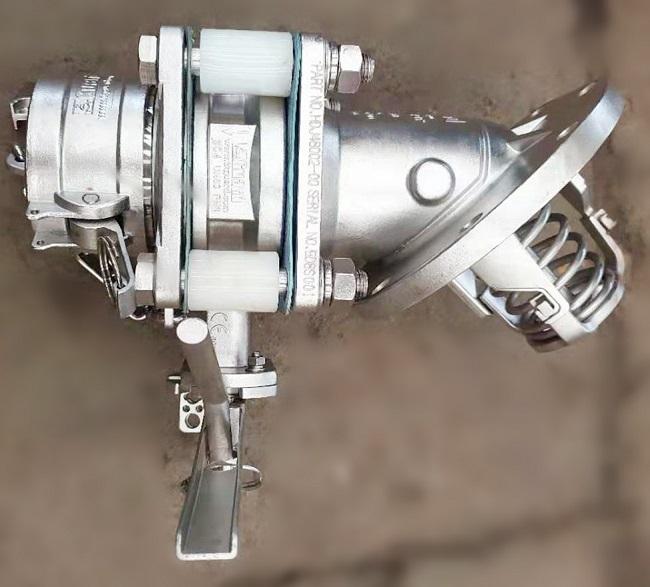

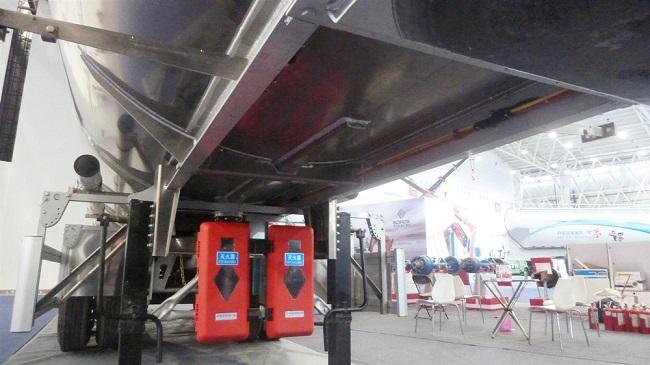

Aluminum Oil Semi Tanker Trailer Spare Parts Show:
Aluminum Oil Semi Tanker Trailer Factory Show:
