Floating Marine Rubber Airbag High Pressure Rubber Airbag 1.5m*15m
1.5m*15m Ship Launching Floating Marine Rubber Airbag Natural Rubber Roller Airbags
Floating Marine Rubber Airbag Description
Floating marine rubber airbags can be used to launch various ships. Barges are a popular means of transportation, especially on inland rivers. The bottom of the badge is flat, which is more suitable for airbags. Floating marine rubber airbag is specially designed to make it safer and smoother to get off the ship. The floating marine rubber airbag with a cylindrical rubber body and two hemispherical ends is ideal for supporting and launching ships up to 100,000 DWT and has fewer restrictions on launching facilities and terrain.
Floating marine rubber airbag for launching ships is a rubber airbag used for launching new ships or upgrading for repair. The floating marine rubber airbag has been innovated in China and is becoming more and more popular in shipyards in China, Southeast Asia, the Middle East, and South America. It has the advantages of flexibility, low cost, and recyclability to provide special economy for the launching of small ships and ships.
Constructions Of Floating Marine Rubber Airbag
- Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
- Cord layers: 4-10 layers
- Shape: a cylindrical body, two heads
- Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe
Floating Marine Rubber Airbag Advantages
Ultra-high tensile strength-heavy-duty synthetic tire cord is the frame material of our marine rubber airbags. Even in deep water produced by ground operations, it can withstand extremely high working pressures.
Wear resistance—Concerning the big thickness of the airbag body, Therefore, it can resist scratches and wear in harsh environments. Even the outer rubber layer is damaged. The inner synthetic tire cord layer can also work well.
Multiple applications-Floating marine rubber airbags can be used for surface buoyancy support like closed airbags. It can also be used for ship salvage work from deep water to surface.

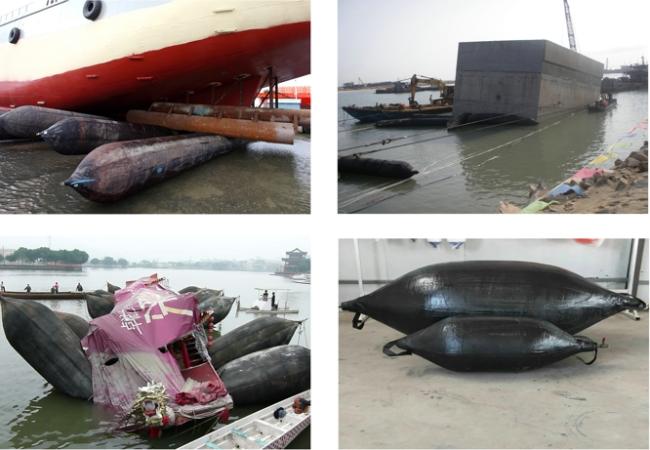

Floating Marine Rubber Airbag Application
- Ship launching and upgrading
- Caissons lifting and floating
- Ship salvage
- Weight moving & lifting
- Pipeline blocking
Floating Marine Rubber Airbag Specification
| Series | Model | Diameter(m) | Working Pressure(Mpa) | Working Height(m) | Beating Capacity(Ton/m) | ||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 | ||
