Railway Horizontal Wheel Press Machine , Wheel Dismount And Backpress Machine

Application Scope:
The wheel press machine is applicable for wheelset dismounting and back pressure test of different types of locomotives.

Main Technical parameters:

(*The detail parameters can be modified as per customer's actual requirements.)

Main Features:

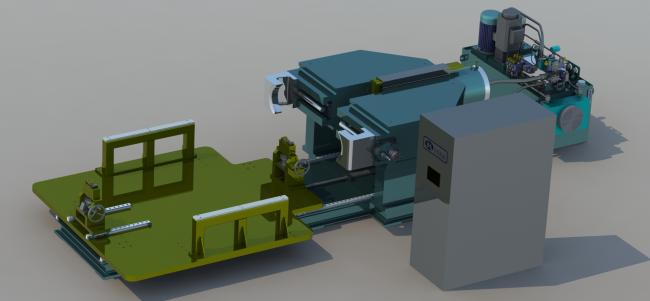

• The wheel press machine is mainly composed of machine chassis, fixed machine frame (with cylinder device), claw mechanism, detection system, hydraulic system, electrical control system and servo working platform etc.
• Overall welded structure and carried out overall annealing and stress relieving treatment.
• Special patented ram device to prevent axle upsetting.

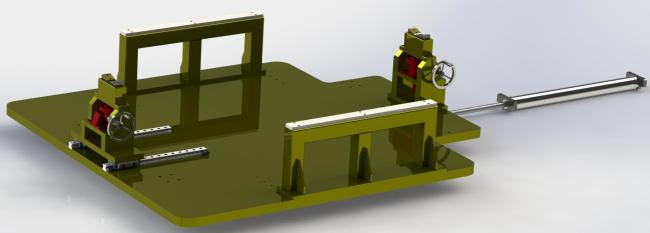

• Using a movable working platform, to fulfill the wheelset positioning support of domestic/foreign different types of locomotive, and it is fast, convenient and reliable.
• Two dismounting claws can move synchronously. It can do dismounting by fastening rim inner side or wheel hub dismounting slot.
• This wheel press machine can configure back pressure test function as per customer needs.
• Siemens PLC and AdvanTech Industrial computer to control the operation.
• Convenient human machine interface. It can plot pressing curve of pressure vs displacement etc.
• Equipped with two operation modes: Automatic & Manual.
• Only one operator is required to complete all the operations.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

• Operating and maintenance instruction manual;
• General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
• Foundation drawing;
• Spare part list, Special tool list;
• Product certificate/Factory Acceptance Certificate, packing list, etc.


Application example:

• CRRC ZIYANG CO.,LTD.;
• CRRC Zhuzhou Electrical Locomotive Co.,Ltd;
• Wuhan Railway Wuhan High-power Locomotive overhaul base;
• etc.
