3000kN Railway Depots Horizontal Wheel Press 31.5MPa

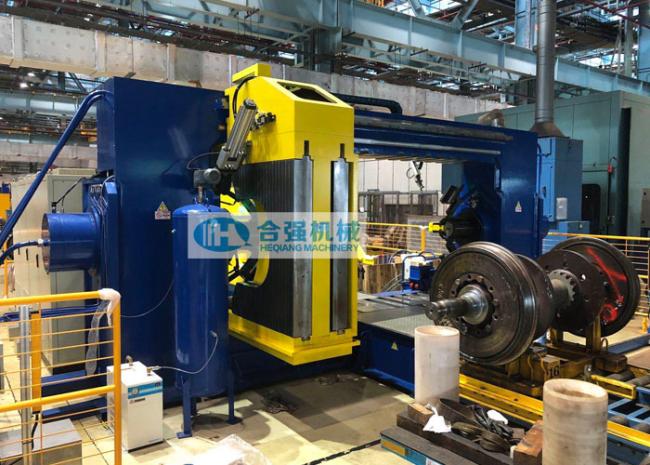

300 Tons Railway Horizontal Automatic Wheelset Press Without Pit Foundation
Application scope:
Heqiang Machinery Automatic Wheel Presses are used to mount, dismount and back pressure testing wheelset wheels, brake discs, gear on to / off of axles for all railway vehicles (passenger cars, wagons, metros, EMU etc.). It can generate, record, save and print the pressing curve (Pressure vs displacement, pressure vs time). It's only required one operator to operate the press.
Machine features:
- Gantry frame structure, Movable resistant column;
- Double ram cylinder pressing without reversal of the axle;
- Special patented elastic centres for center hole positioning;
- Electrical trolley for wheelset loading and unloading;
- Centre mechanism for wheelset positioning;
- Mounting and dismounting the wheelset with a single positioning on the wheel press;
- Standard roll-in or pass-through design;
- Automatic recording of mounting curve, radial and axial run-out and back pressure test of each mounted component;
- Siemens S7-300 PLC and Advantech IPC;
- High pressure oil injection pump is available for option;
- Applicable to the wheelset with standard, narrow, meter and board gauge.
Main technical parameters:
| Pressing force | 3000kN |
| Ram cylinder | Double head cylinders |
| Ram stroke | 0~700mm, 0~900mm |
| Fast forward speed | 20 mm/s, adjustable |
| Pressing speed | 3 mm/s, adjustable |
| Return speed | 24 mm/s, adjustable |
| Max centre load | 10000 kg |
| Support Trolley | 1 set, Electrical type |
| Max trolley load | 4000 kg |
| System pressure | 31.5MPa |
| Main power supply | 3 phase, AC, 380V or 400V, 415V, 50HZ/60HZ |
| Inner distance control accuracy | Less than 0.5 mm |
| Wheel position difference control accuracy | Less than 0.5 mm |
| Ram positioning accuracy | Less than 0.04 mm |
| Error of measuring accuracy | Not more than 0.01 mm |
| Concentricity of cylinders' centerline | Not more than 0.3 mm |
| Wheelset weight | 3000 kg |
| Axle length | 1700 ~ 2700 mm |
| Wheel diameter | Φ740 ~ Φ1250 mm |
| Wheel seat diameter | Φ150 ~ Φ270 mm |
| Wheel hub diameter | Φ180 ~ Φ400 mm |
(*Above parameters are indicative, and can be modified as percustomer's requirements.)
Application Examples:
- Wuhan CRRC Changchun Railway Vehicles Co.,Ltd;
- CRRC Qingdao Sifang;
- Beijing Subway Rolling Stock Equipment Co.,Ltd.;
- Harbin High-power Locomotive overhaul base;
- Shanghai High-power Locomotive overhaul base;
- Shenyang Railway Bureau;
- Taiwan Railways;
- Beijing Metro, Chengdu Metro, Tianjin Metro,
- Etc.
