Railway Automatic Wheelset Bearing Mounting And Dismounting Press
Wheel Bearing Mount and Dismount Press, Bearing Assembly and Disassembly Press, Railway Bearing Pusher and Puller

Application Scope:
This Railway Bearing Mounting and Dismounting Press is applicable for the assembly and disassembly work of the rolling bearings of the railway rolling stocks. It is generally used in wheelset/bogie maintenance depot and workshop. It can generate, record, save and print the pressing curve in the requried format. Only one operator is required to run the press.

Technical Parameters:

(*Above parameters are indicative, and can be modified as per customer's requirements.)

Structure & Features:

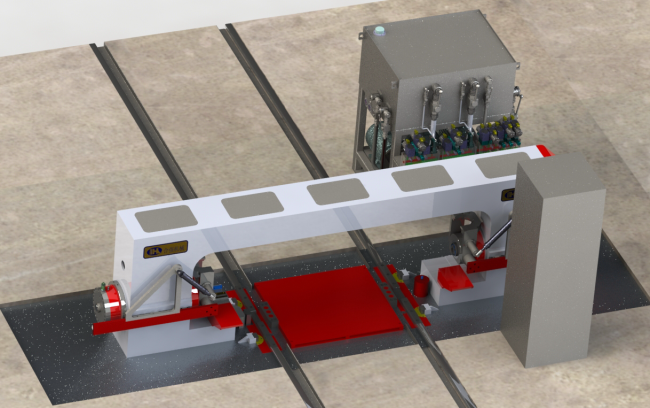

The bearing mounting and dismounting press is mainly composed of main frame, left/right cylinders, dismounting claw devices, wheelset lifting device, push wheel device, calibration device, hydraulic system, measuring and electrical control system etc.

• This Wheel Bearing mount and dismount press will be installed in a foundation pit.
• It's able to mount and dismount the rolling bearings onto / off from the axles.
• Automatical mounting and dismounting both end bearings simultaneously with a single positioning.
• Automatical mounting and dismounting single end bearing separately.
• Manually complete the mounting and dismounting as per the working steps. (used during maintenance and commissioning).
• Automatic mounting and dismounting under non-load (used in test run).
• Veto for wrong input and incorrect operation.
• Overall welding structure, with sufficient strength and rigidity.
• Double cylinders for mounting and dismounting. With special anti-upsetting centre devices.
• Intelligent lifting platform. It's equipped with wheel locking mechanism, so as to avoid wheelset runout during mounting and dismounting and ensure the stability of the pressing force.
• Siemens S7 PLC to control the operation.
• User-friendly human machine interface.
• The operation system can generate, record, save and print the pressing curves.
• On-line passing-through arrangement, the wheelset can be pushed out automatically after the bearing is dismounted.
• Unique hydraulic servo system to achieve the variable pressing speed and ensure the stable and reliable pressure during opeation.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
