Grey 8.0w/M.K 3.28g/Cm3 Heatsink Thermal Pad
Heatsink Flexible Fiberglass Silicone Pad Thermal Conductive Sheet
Product description

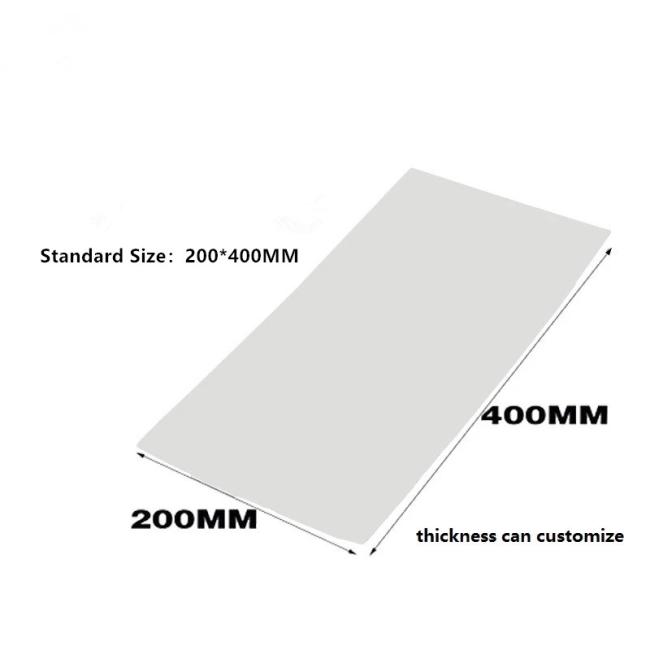

Silicone thermal pad is specially designed for the purpose of high performance thermal conductivity. Pad standard size 400mm*200mm according to customer needs to cut the shapes.
Basic thickness 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm, special size and thickness can be customized. The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer’s requirement. Product color is mass production, if need special color can be adjusted to the actual situation
Product features
|
Test Project |
M-TP800 Test Results |
Units |
Tolerance |
Test Method |
|
Color |
Light blue |
/ |
/ |
Visual |
|
Thickness |
0.50 to 15.00 / 0.02 to 0.59 |
mm/ inch |
±10% |
ASTM D374 |
|
Specifications |
200*400 / 7.87*15.75 |
mm/ inch |
±5.00 |
ASTM D374 |
|
Specific Gravity |
3.28 |
g/cm³ |
±0.20 |
ASTMD792 |
|
Hardness |
35.00 |
Shore 00 |
±5.00 |
ASTM D2240 |
|
Voltage Endurance |
≥3.00 |
KV/mm |
±0.30 |
ASTM D149 |
|
Elongation |
0.45 |
% |
±0.20 |
ASTM D412 |
|
Tensile strength |
2.30 |
Kgf/cm² |
±0.50 |
ASTM D412 |
|
Temperature range |
-40.00 to 200.00 |
ºC |
/ |
EN 344 |
|
Thermal conductivity |
8.0 |
w/m.k |
±0.40 |
ASTM D5470 |
|
UL Flammability Rating |
V0 |
/ |
/ |
UL94 |
|
ROHS Compliance |
YES |
/ |
/ |
ROHS |
Product application

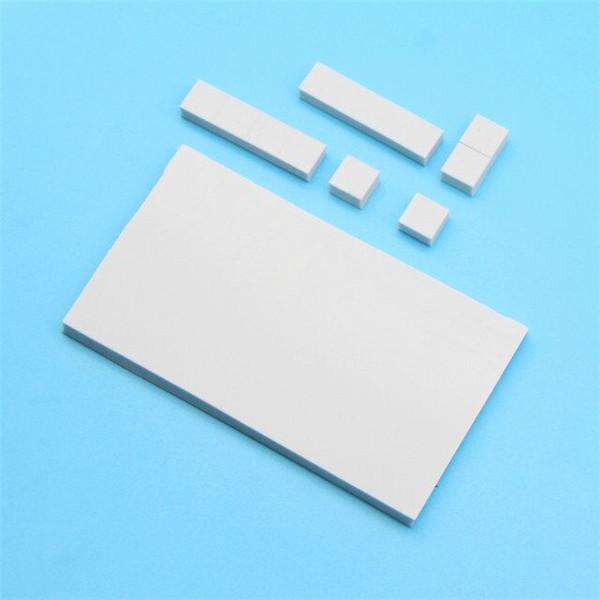

Product details
Packaging & Shipping

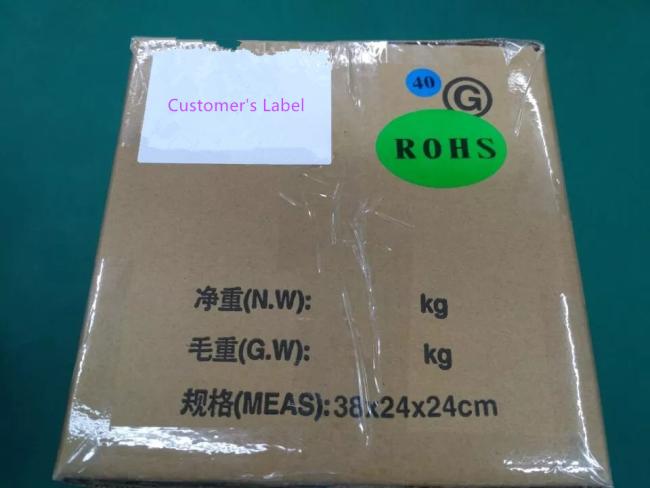

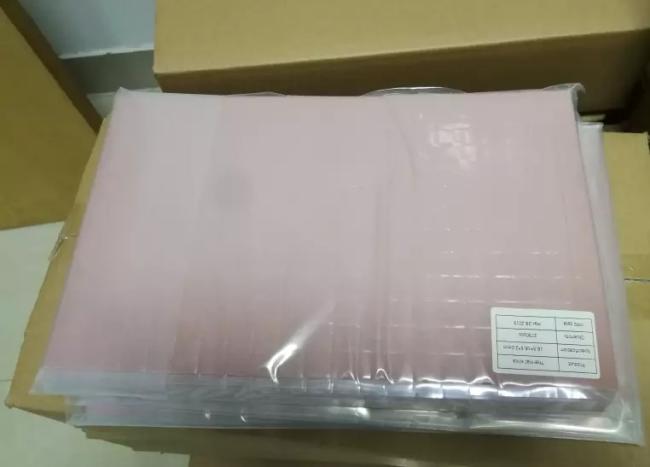

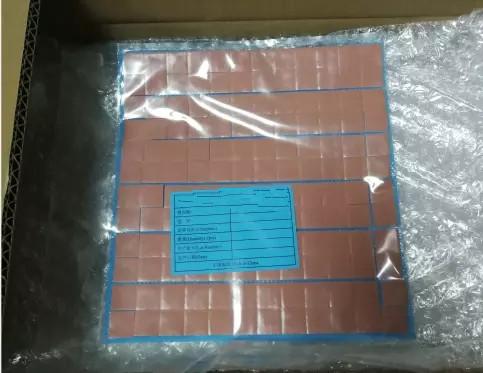

Pakaging
Shipping
Q1: What's the thermal conductivity test method given on the data sheet ?
application ?
Q4: Do you offer free samples ?
Q5: How to ship the orders ?
kindly tell us before shipping out.
