JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine
JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine
1. Product features:
The machine extrusion pressure, high vacuum, dense out of the mud, the appearance of neat. Fully suitable for a code burning process requirements, high productivity, low molding water content, reducing energy consumption and loss in production. Is the production of all gangue, high volume fly ash, shale and inferior sand brick ideal equipment.
2 . Techical parameter
| Date | Units of meas | JKY90-4.0 |
| Production capacity | Pieces/h | 20000-32000 |
| Reamer diameter | mm | 600 |
| Pressure | Mpa | 4.0 |
| Moisture content | % | 13～18 |
| Vacuum degree | Mpa | ≤-0.092 |
| Power | kw | 280+110 |
| Size | mm | 8600×2850×3300 |
| Weight | kg | 30000 |
3 . Functions
It is appliable for the production of solid brick , load-bearing perforated brick , and hight-rate hollow brick with the material of coal gangue , shale , high-volume fly ash , urban construction waste , gangue waste , inferior soil .
4. Specifications
1) Reasonable structure
2) High pressure extrude
3) Trowel with wear-resistance metal spray
4) Optional install
5) Stability

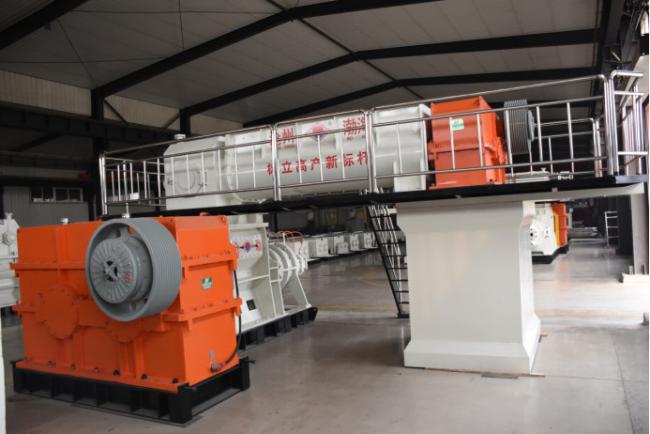

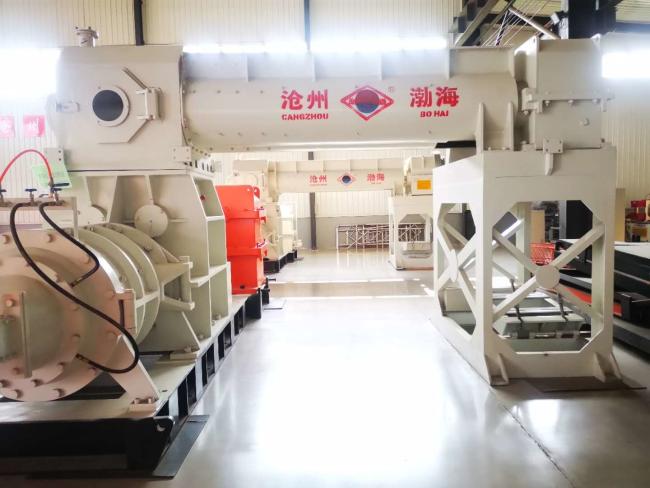

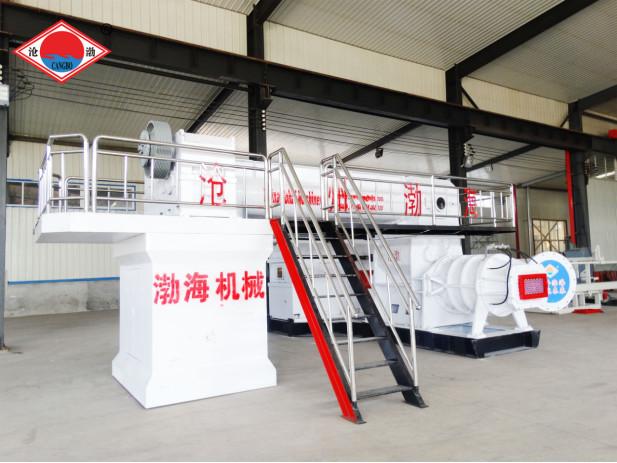

5. Machine pics
