JKY50 Burnt Red Clay 500mm Auto Brick Making Machine
JKY50 Automatic Machine Making Burnt Red Clay Brick Auto Bricks Machine
1.product description
1. JKY50 brick making machine is an extrusion molding equipment for hollow brick production line.
2. It is suitable for the production of hollow bricks with high specific pores, sintered bricks with high fly ash, low plastic cement bricks, and stone and shale bricks.
3. It has many advantages: novel structure, advanced technology, strong extrusion force, large capacity, high vacuum, so it can replace imported equipment.
4. It is controlled by an air clutch, which is sensitive, convenient and reliable.
Appraised as excellent product by national authority. It is exported to Bangladesh, Sudan, Egypt, etc. and has been highly appreciated.
2. Product features:
1.The machine structure design is very unique, operate steadily,machine small occupation area.
2. High vacuum extrusion ,green bricks has a small moisture content ,easy to dry .
3. Produce different size and different type bricks /blocks .
4. The bricks drying process can adopt small drying chamber, tunnel dryer chamber.
5. The bricks fired can adopt local kiln,hoffman kiln, tunnel kiln .
6. Low cost, big capacity ,high profit .
3 . Techical parameter
| Specification type | JKB50-3.0 |
| Production capacity(/h) | 12000-14000 |
| Reamer diameter(mm) | 500 |
| Power(kw) | 160 |
| Size(mm) | 5400×1900×1700 |
| Weight(kg) | 10200 |
4.Product Advantage
1. The energy-saving vacuum extruder is all-steel structure with reasonable structure
2. Energy saving,
3. Efficient,
4. Easy to maintain.
5. It can make solid bricks with high clay content of clay bricks, fly ash, shale and coal clay stone.

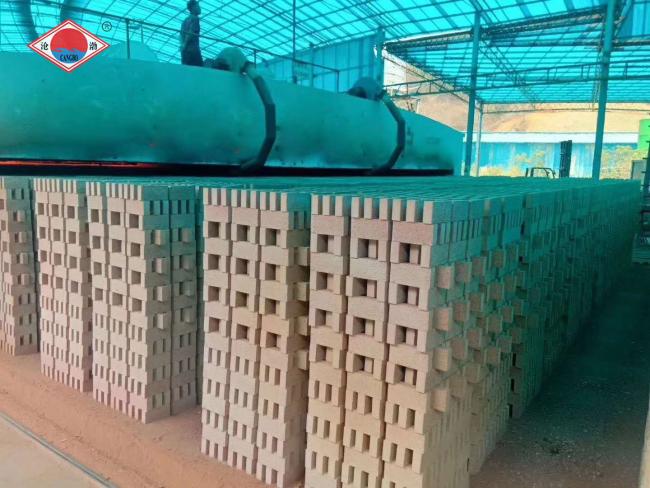

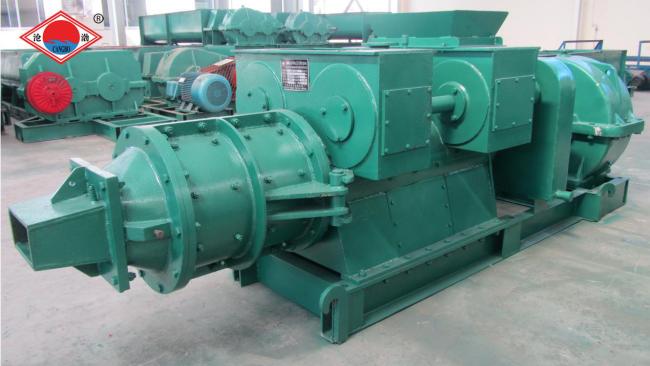

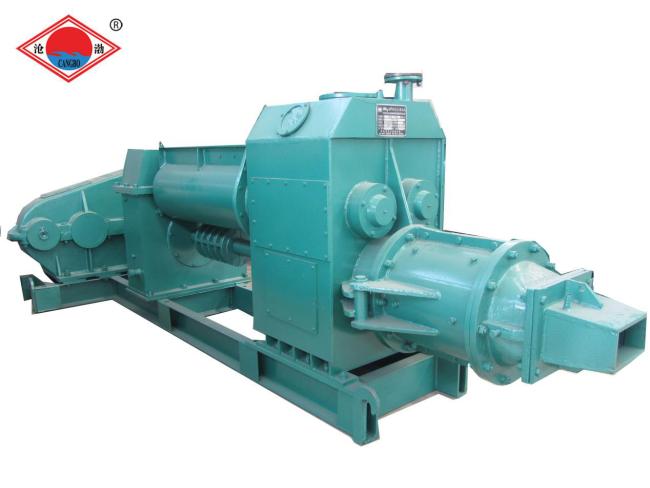

5. . Machine pictures
