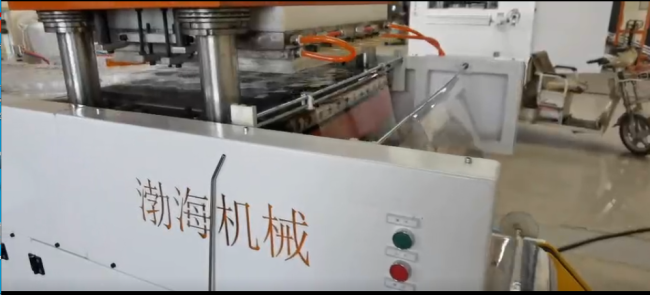

Mechanical Plc Plastic Cup Molding Machine 3 Station
Mechanical Disposable Plastic Molding Machine Three Station
Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient. Negative pressure forming die punching and shearing. Upper and lower mold forming method. Servo film feeding, stepless length adjustment, high speed, accuracy and stability. Two-stage heating on electric heating furnace
|
Machine Frame
|
Square Steel Size 120×120: machine base is complete steel plate with thickness=40mm
|
|
Machine Door
|
The top part of the door with observation window from the operation side, Heating oven could move outside
|
|
Mold Plate
|
QT500 nodular cast iron, pore-free, sand free
|
|
Pillar
|
4-pillar dia.=80mm, 40Cr steel thermal refining, hard chrome plating, mirror finish: Gide bushing Dia.≤200mm, Material: metal
ceramic Zns
|
|
Max. Forming Area
|
660×320mm
|
|
Max.Forming Depth
|
230mm
|
|
Mold Plate Size
|
1350×420mm
|
|
Main Gearmotor
|
P-11KW(4P)
|
|
Strecting Air Cylinder
|
160X160mm
|
|
Sheet Feeding Motor
|
2.2KW
|
|
Sheet Thickness
|
0.25~2.0mm
|
|
Running Speed
|
≤32cycles/min
|
|
Electrical Consumption
|
Approx 50KW
|
|
Installing Power
|
Approx120KW
|
PLC programming touch screen operation. It adopts servo pull tab, which is accurate, stable and easy to operate. The height adjustment of the top mold is controlled by an electric motor, which is accurate, average and stable.
