200mm Plastic Molding Equipment Three Section Lunch Box Fully Automatic
Fully Automatic200mm Plastic Molding Equipment Three Stationlunch Box

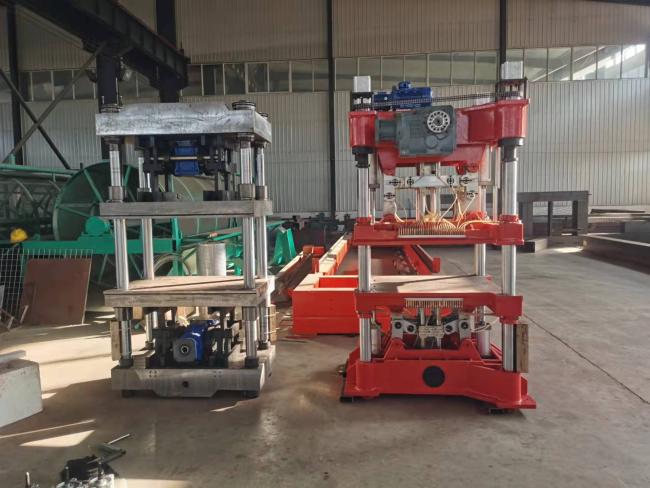

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is
|
Model
|
TTF-400A
|
|
Forming Area
|
400mm x 300 mm
|
|
Forming Depth (Max.)
|
60mm
|
|
Sheet thickness
|
0.2-2.0mm
|
|
Forming Speed (Max.)
|
35times/min
|
|
Air pressure
|
0.6-0.8mpa
|
|
Air consumption
|
2.0 m³/min
|
|
Water consumption
|
0.7 m³/h
|
|
Power supply
|
AC 380V, 50Hz, Three-phase, Four-wire
|
|
Used power
|
29Kw
|
|
Procedure
|
Forming-cutting-stacking
|
|
Dimension
|
L6000*W4000*H2500mm
|
|
Weight
|
About 5.2T
|
1. Integrated type, punching and cutting, stacking and counting as one;
2. The most advanced cam structure (equipped with SKF bearings);
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. Each servo motor has overload protection for machine’s overworking.
