ABS 150mm Blister Forming Machine Servo Positive Air Pressure Thermoforming
Servo Positive Air Pressure Thermoforming Blister Forming Machine
The control board is near the operator, can be operated easily, greatly improve the efficiency of production.
The far-infrared ceramic heating elements can control every single block heater temperature, easy temperature control.
The furnace is guided by bearing and guide pin, can move steady, enhance efficiency and furnace life.
The cooling fan is equipped with a wide mouth and spray device, to improve efficiency and product quality.
|
|
CH-68-XSJ
|
CH-70-XSJ
|
|
Power
|
12.5KW
|
15KW
|
|
Forming Area
|
560*610mm
|
560*610mm
|
|
Forming Height
|
150mm
|
150mm
|
|
Speed
|
120-180Moulds/H
|
120-180Moulds/H
|
|
Thickness Of the Material
|
0.2-1.5mm
|
0.2-1.5mm
|
|
Cooling Fan
|
●
|
●
|
|
Upper mold
|
●
|
●
|
|
PLC Control
|
●
|
●
|
|
Robot hand rise/fall
|
●
|
●
|
|
Suitable Material
|
PVC/PET/PETG/GAG/PP/PS/ABS
|
|
|
Material type
|
Roll or Sheet, thickness:0.2-1.5(mm)
|
|
|
Machine Size
|
1800*1500*2200mm
|
2200*2250*2200mm
|
This machine can be equipped water spray cooling system if the blister is deep and complex.

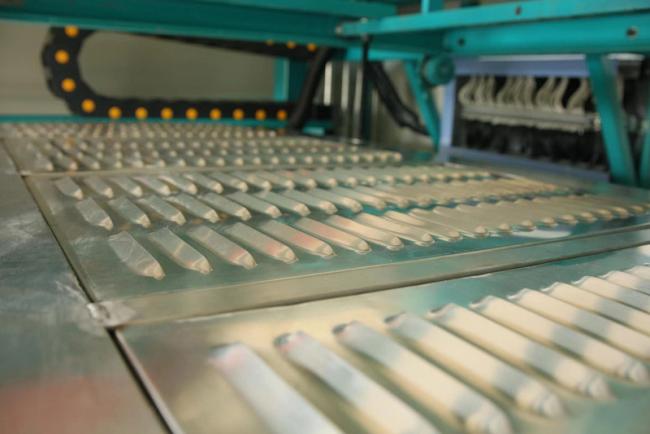

This machine can form all kinds of blisters just replace mould.
