Ce Servo Blister Sheet Making Machine Vacuum Forming 700mm
Price:
Negotiate
MOQ:
1
Delivery Time:
20day
Brand:
BoHai
Product Description

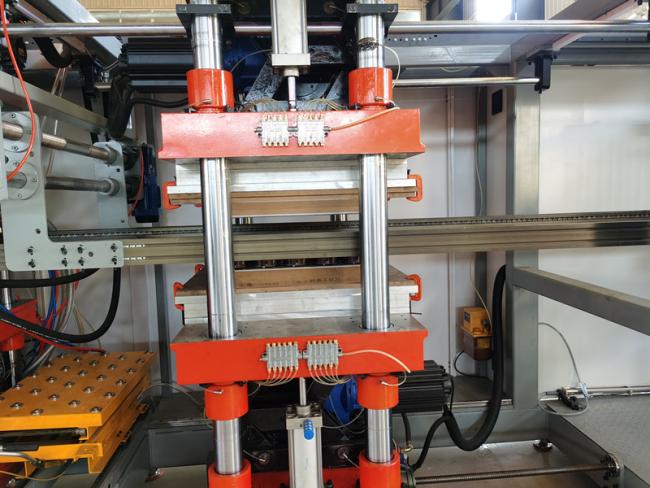

Vacuum Forming Servo Blister Sheet Making Machine 700mm
1. In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
2. Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;
Product Paramenters
|
Model
|
HX-18
|
|
Forming Length(mm)
|
Max.1220
|
|
Forming Width(mm)
|
460-710 (Adjustable)
|
|
Roll material width(mm)
|
500-760 (Adjustable)
|
|
Material Thickness(mm)
|
0.2-2.0
|
|
Material
|
PVC,PET,PP,PS,HIPS,ABS,ACRYLIC
|
|
Material type
|
Roll
|
|
Heater(pcs)
|
60
|
|
Heating Power(kw)
|
36
|
|
Total Installed Powe(Kw)
|
40
|
|
Power Consumption(kW)
|
20-30
|
|
Vacuum Pump(m³/h)
|
100
|
|
Customized Cooling Fan(set)
|
2
|
|
Spray gun(pcs)
|
12
|
3. rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing and opening speeds and timing of the tooling;
4. The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely improved due to the common use of electric motors for chain indexing versus air cylinders, gear racks, and clutches on older machines;
