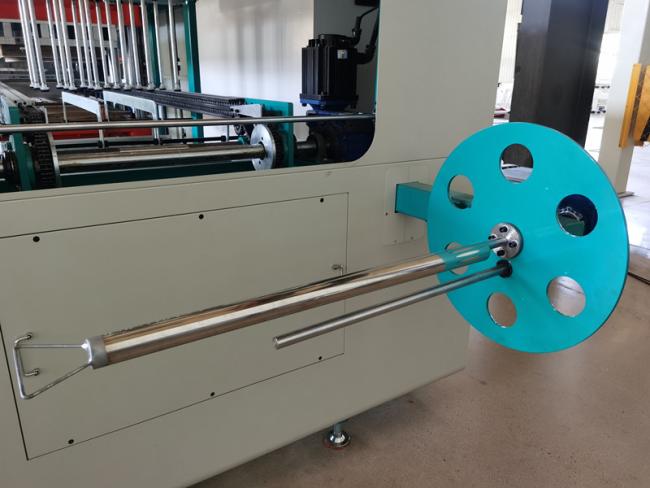

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene
Three Station Blister Forming Machine Servo One Machine
1. Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.
2. The upper and lower mold forming methods.
3. Servo feeding, stepless length adjustment, high speed, accuracy and stability.
|
Screw material
|
38CrMoAIA
|
Nitriding depth of screw (mm)
|
0.6-0.7
|
|
Screw hardness
|
>HV840
|
Screw barrel hardness
|
>HV940
|
|
Screw speed (r/min)
|
10~80
|
Blister limit (Pa)
|
2×102
|
|
Heating system
|
Cast aluminum ring
|
Cooling system
|
Air-cooled
|
|
Gear box
|
Helical gear
|
Screw heat treatment
|
Carburizing and grinding teeth
|
|
Die heating system
|
Stainless steel heating rod
|
Die structure
|
Straight cone hanger T-shaped head
|
|
Drive
|
Hydraulic transmission
|
Die design
|
Six-sided hard chrome plating and polishing
|
|
Forming machine
|
|||
|
Motor (kw)
|
1.5
|
Forming depth (mm)
|
80
|
|
Vacuum pump speed (m3/h)
|
80
|
Sheet thickness (mm) |
0.2-2.5
|
|
Blister limit (Pa) |
2×102
|
Air compressor (L)
|
100
|
4. The second stage heating of the electric heating furnace.
5. The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. The division one control and the other adopts the human-machine interface digital input, which has high fine-tuning accuracy, uniform temperature and stability (not affected by external voltage, temperature fluctuation does not exceed 1 degree), Low energy consumption (about 15% energy saving), long service life of the furnace plate and other advantages.
