Pet Fruit Box 850mm Blister Forming Machine Fully Automatic Negative Pressure
Pet Fruit Box 850mm Blister Forming Machine Fully Automatic Negative Pressure

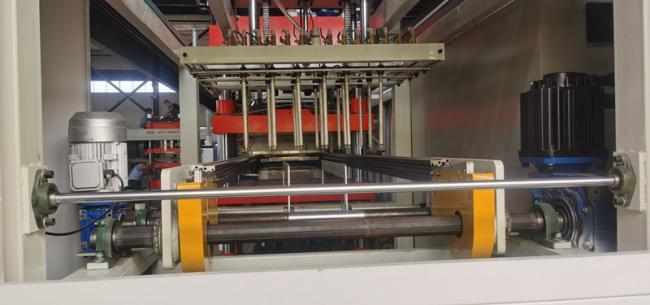

This machine adopts vacuum forming, equipped with automatic punch trimming function and conveyor belt stacking (three-station optional) function.
This machine uses a hydraulic device with 60 tons cutting force, which is strong and has a long life.
The whole machine parts are made of hard chrome on the surface to prevent rust.
The heating part of the machine is fully sealed to prevent temperature difference from being caused by external factors.
|
Forming Area
|
Max. 620x420mm
|
|
Depth of Draw Under Sheet
|
Max. 120 mm
|
|
Depth of Draw Above Sheet
|
Max. 60mm
|
|
Suitable Material
|
PET PS PVC PP
|
|
Sheet Width
|
460- 640 mm
|
|
Material Thickness Range
|
0.3-1.5mm
|
|
Material Roll Diameter
|
Max. 800
|
|
Dry Run Speed
|
Max. 25cycles/min
|
|
Power Supply
|
380V/50HZ
|
|
Power Consumption
|
Approx.35kilowatts/hr
|
|
Air Pressure
|
0.7Mpa
|
|
Air Consumption
|
2500 Liters/min
|
|
Cooling Water Consumption
|
13 Liters/min 15° - 20°C
|
|
Dimensions
|
9.5m*2.2m*2.2(L*W*H)
|
The vacuum tank is increased to 0.4m3, effectively increasing the vacuum force.
This machine adopts double-tube vacuum synchronization function, and the vacuum walkway is added to make the product molding more perfect.
