Truck Clutch Parts Clutch Master Cylinder Truck Toyota Transmission Parts 47201-36300

Truck Clutch Parts Clutch Master Cylinder Truck Toyota Transmission Parts 47201-36300

Center-feed type system

The center-feed type system uses small hooks attached to the nose of the piston. When the clutch pedal is not depressed, these hooks engage a flange on the valve stem. A circular rubber seal on the opposite end of the valve stem is held away from the master cylinder body. This allows fluid flow to and from the reservoir. When the clutch pedal is depressed, the hooks no longer hold the valve stem and it is pushed to the bottom of the master cylinder body. The reservoir is now separated from the fixed fluid, contained between the master and slave cylinder. As the clutch pedal is further depressed and the master cylinder piston moves even further, fluid is forced toward the slave cylinder, resulting in the disengagement of the clutch. Master cylinders are also subdivided into two additional categories: Integral reservoir systems and remote reservoir systems. The fluid reservoir of an integral reservoir system is part of the master cylinder body. The fluid reservoir of a remote reservoir system is attached to the master cylinder body via a rubber hose. The use of integral or remote reservoirs is dictated by the available room in the engine compartment. Both integral and remote reservoir types are used in seal over port and center feed type systems.

1. Product Description.

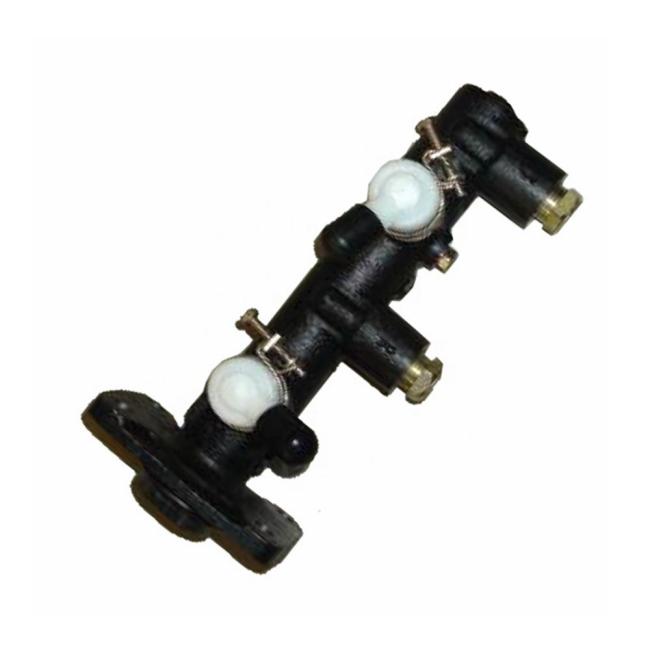

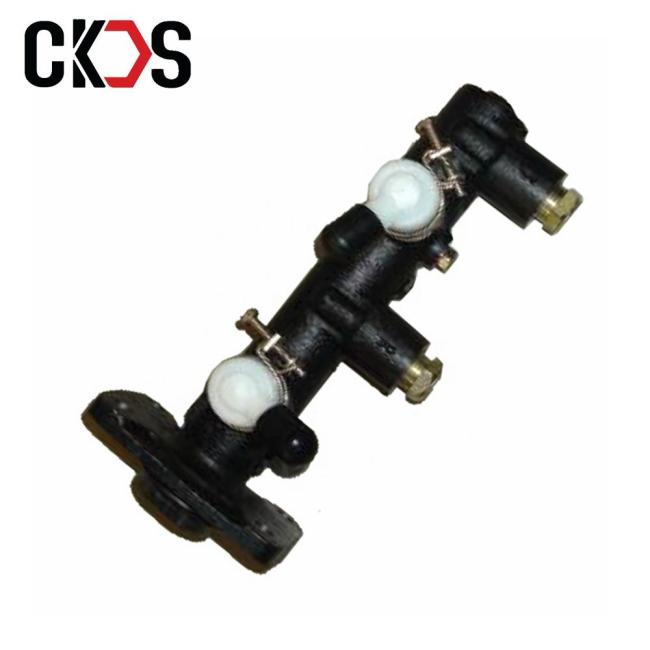

2. Detailed Product Pictures

3.Product Advantages

- Lower Failure Rate

-- 100% Same Original Product Qualtiy

- Best for Parts Replacement

Along with technologies and new car manufacturers’ requirements, it has become difficult to fit a cable in a straight line between the pedal and the lever. That’s why more and more cars are now using hydraulic systems. These are much more flexible and reliable compared to manual systems. First, they enable an optimal and constant pedal effort. Second, the used material is much lighter (up to 70% reduction of weight compared to the standard clutch system command) as well as much more compact.

4. FAQs

Q: Which shipping term you can supply?

A:By sea, air or by express ( DHL, Fedex, TNT, UPS, EMS)

Q: If I am not satisfied with the products, can I returns goods?

A:Yes, we offer exchange and repair service under warranty. Please contact us before you return.

Q: How can I trace my order?

A:We will send you the tracking number by email.
