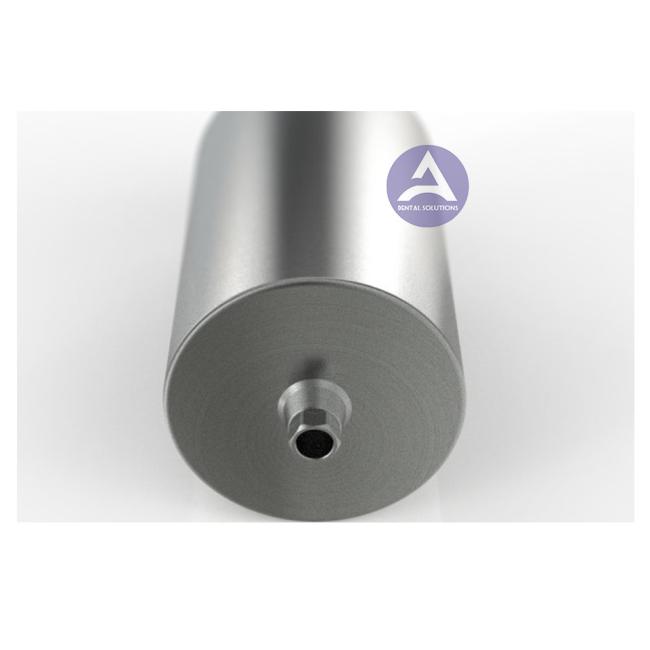

Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0

Astra Tech OsseoSpeed® 14mm Implant Internal Titanium Yenadent Holder Premill Blank 10mm Engaging

Yellow(NP 3.0mm) / AQUA(RP 3.5/4.0mm) / LILAC(WP 4.5/5.0mm)

Material:
Ti 6AI-4V ELI (Supply from Germany)

Size:

Yellow 3.0

Aqua 3.5-4.0

Lilac 4.5-5.0

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of Astra OsseoSpeed™ Dental Implant:

Profile implants are produced with the same grade 4 titanium and surface texture (Fig.4) as standard OsseoSpeed™ implants. The coronal portion of the Profile implant is cut at a 30 ° angle (Fig.5) half way through the diameter of the implant. This feature may allow placement of the implant in to a sloping bony crest without bone grafting or a portion of the implant above or below the bone at the time of implant placement. The implant/abutment interface connection is constructed as a internal, double hex conical connection (Fig.2), allowing 6 different positions for final abutments and machined to the same dimensions regardless of the implant diameter..


TX S Profile implants (Fig.6) are machined with a parallel geometry and a tapered apex. Two outside thread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. One implant diameter of 5.0mm, available in lengths of 9, 11, 13, 15 and 17mm comprises the TX S Profile product group.
