LM5UU 3D Printer Bearings
LM5UU 3D Printer Bearings
LM5/6/8/10/12/13/16/20UU Aluminum Alloy Linear Ball 3D Printer Bearing
Descriptions of Linear Ball Bearing
Material: aluminum alloy
Type: LM5UU, LM6UU ,LM8UU, LM10UU, LM12UU, LM13UU ,LM16UU, LM20UU

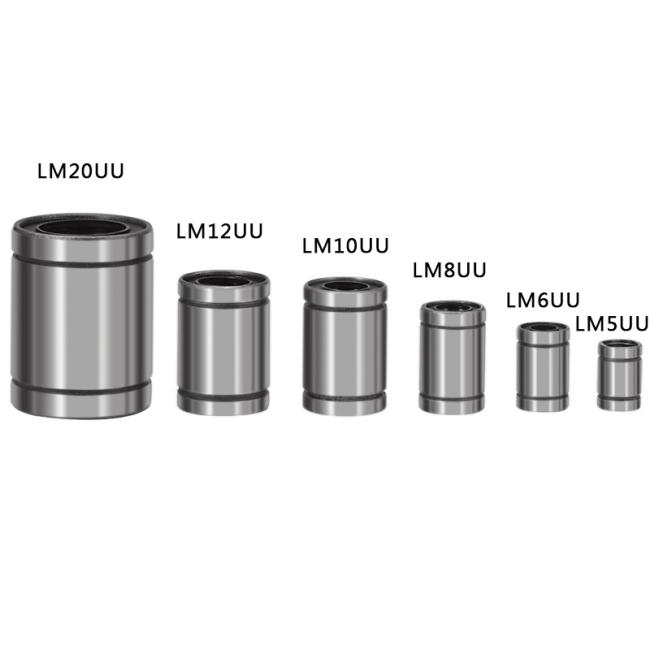

Styles of Linear Ball Bearing
LM5UU (5*10*15) 4g
LM6UU (6*12*19) 8g
LM8UU (8*15*24) 16g
LM10UU (10*19*29) 24g
LM12UU (12*21*30) 31.5g
LM13UU (13*23*32 43g
LM16UU (16*28*37) 69g
LM20UU (20*32*42) 87g
Parameters of Linear Ball Bearing
|
Model number |
Specification | Main diamensions | ||||||||||
|
Number Of ball rows |
Weight (g) |
Inscribed circle | Outer diameter | Length | W | DI | ||||||
| Dr(mm) | Tolerance | Dr(mm) | Tolerance | L(mm) | Tolerance | B | Tolerance | |||||
| LM3UU | 4 | 1.4 | 3 | 0-0.008 | 7 | 0-0.009 | 10 | 0-0.12 | ||||
| LM4UU | 4 | 1.9 | 4 | 8 | 12 | |||||||
| LM5UU | 4 | 4 | 5 | 10 | 15 | 10.2 | 0-0.2 | 1.1 | 9.6 | |||
| LM6UU | 4 | 8 | 6 | 0-0.009 | 12 | 0-0.11 | 19 | 0-0.2 | 13.5 | 1.1 | 11.5 | |
| LM8SUU | 4 | 11 | 8 | 15 | 17 | 11.5 | 1.1 | 14.3 | ||||
| LM8UU | 4 | 16 | 8 | 15 | 24 | 17.5 | 1.1 | 14.3 | ||||
| LM10UU | 4 | 30 | 10 | 19 | 0-0.013 | 29 | 22 | 1.3 | 18 | |||
| LM12UU | 4 | 31.5 | 12 | 21 | 30 | 23 | 1.3 | 20 | ||||
| LM13UU | 4 | 43 | 13 | 23 | 32 | 23 | 1.3 | 22 | ||||
| LM16UU | 4 | 69 | 16 | 28 | 37 | 26.5 | 1.6 | 27 | ||||
| LM20UU | 4 | 87 | 20 | 0-0.010 | 32 | -0-0.016 | 42 | 30.5 | 1.6 | 30.5 | ||
| LM25UU | 4 | 220 | 25 | 40 | 59 | 41 | 1.85 | 38 | ||||
| LM30UU | 4 | 250 | 30 | 45 | 64 | 44.5 | 1.85 | 43 | ||||
