200KHZ 18-80Vac DMA860H Digital Stepper Motor Driver 2 Phase
200KHZ 18-80Vac DMA860H 2-Phase Digital Stepper Motor Driver
Description of DMA860H Stepper Motor :
1. Can drive 4,6,8 line two-phase stepper motor
2. Voltage input range: 18-80Vac
3. Current maximum: 7.2A, resolution: 0.1A
4. Subdivision range: 400~51200
5. Signal input: differential / single-ended, pulse / direction or double pulse
6. Precision current control greatly reduces motor heating
7. The current is automatically halved at rest
8. Impulse response frequency: 200KHZ
9. Built-in micro-segment
10. Power-on parameter auto-tuning function
11. Optically isolated signal input, strong anti-interference ability
12. With overvoltage, overcurrent and other protection functions

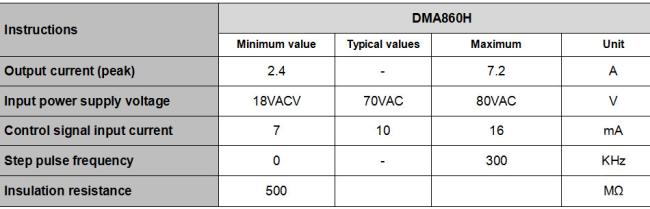

Product Parameters:
|
Voltage Input |
218-80Vac |
| Max Current |
7.2A |
|
Impulse Response Frequency |
200KHZ |

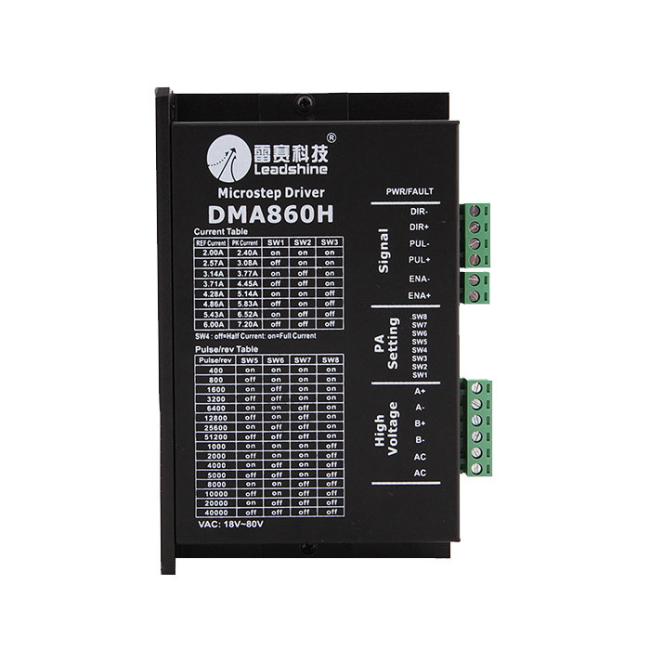

Pictures of DMA860H Stepper Motor :
